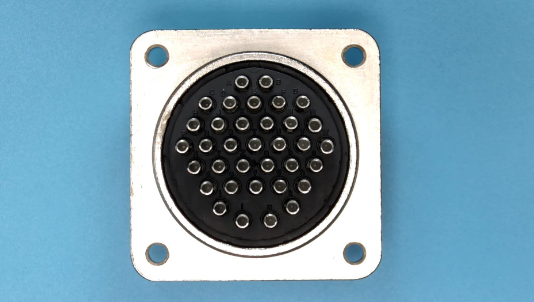

CA02COM-E28-15S-B COUNTRY OF ORIGIN
|
CA02COM-E28-15S-B PARAMETRIC INFO
|
CA02COM-E28-15S-B PACKAGE INFO
|
CA02COM-E28-15S-B MANUFACTURING INFO
|
|
COUNTRY OF ORIGIN
|
Italy
|
China
|
Mexico
|
United States of America
|
United Kingdom of Great Britain and Northern Ireland
|
Germany
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Circular |
| Contact Gender |
SKT |
| Number of Contacts |
35 |
| Termination Method |
Solder Cup |
| Number of Ports |
1 |
| Gender |
RCP |
| Contacts Classification |
35Signal |
| Shell Size / Insert Arrangement |
28-15 |
| Mating Style |
Bayonet Lock |
| Maximum Voltage Rating |
700VDC|500VAC |
| Maximum Current Rating (A) |
22 |
| Maximum Contact Resistance (mOhm) |
6 |
| Wire Size (AWG) |
16-20 |
| Insulation Resistance (MOhm) |
1000 |
| IP Rating |
IP67 |
| Shell Material |
Aluminum Alloy |
| Shell Plating |
Nickel |
| Contact Material |
Copper Alloy |
| Contact Plating |
Silver |
| Strain Relief |
No |
| Polarization |
N |
| Less Contact |
No |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Mating Cycle (Cycles) |
500 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Box Mount |
| Number of Terminals |
35 |
| Product Length (mm) |
41.1 |
| Product Depth (mm) |
50.8 |
| Product Height (mm) |
50.8 |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
