• Supports Standard, Fast and Fast−Plus I2C Protocol
|
• 1.8 V to 5.5 V Supply Voltage Range
|
• 128−Byte Page Write Buffer
|
• Hardware Write Protection for Entire Memory
|
• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs(SCL and SDA)
|
• Low Power CMOS Technology
|
• 1,000,000 Program/Erase Cycles
|
• 100 Year Data Retention
|
• Industrial and Extended Temperature Range
|
|
| CATALOG |
CAT24C512YI-GT3 COUNTRY OF ORIGIN
|
CAT24C512YI-GT3 PARAMETRIC INFO
|
CAT24C512YI-GT3 PACKAGE INFO
|
CAT24C512YI-GT3 MANUFACTURING INFO
|
CAT24C512YI-GT3 PACKAGING INFO
|

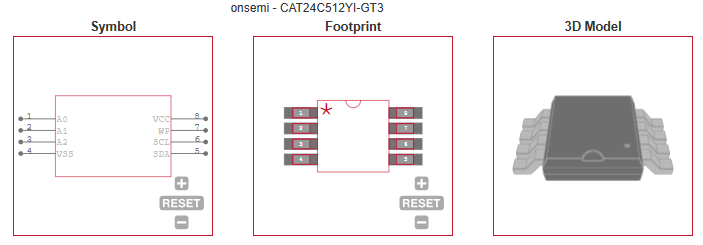

CAT24C512YI-GT3 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Density (bit) |
512K |
| Interface Type |
Serial-I2C |
| Maximum Operating Frequency (MHz) |
1 |
| Maximum Access Time (ns) |
400 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Cycle Time (s) |
5m |
| Programmability |
Yes |
| I/O Mode |
Serial |
| Density in Bits (bit) |
524288 |
| Maximum Operating Current (mA) |
2.5 |
| Hardware Data Protection |
Yes |
| Organization |
64Kx8 |
| Data Retention (Year) |
100(Min) |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Number of Bits per Word (bit) |
8 |
| Maximum Storage Temperature (°C) |
150 |
| Address Bus Width (bit) |
3 |
| Process Technology |
CMOS |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
0.9 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3 |
| Package Overall Width (mm) |
6.4 |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

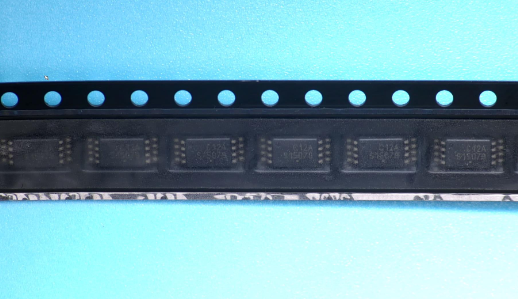

PACKAGING INFO
|
| Packaging Suffix |
T3 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODEL |
 |
| |
