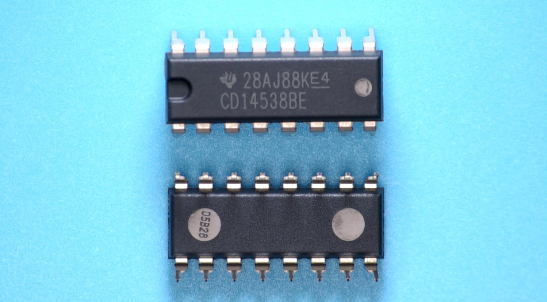

CD14538BE Texas Instruments IC DUAL PREC MULTIVIB 16-DIP

label:

2024/05/27 226

CATALOG

CD14538BE COUNTRY OF ORIGIN

CD14538BE PARAMETRIC INFO

CD14538BE PACKAGE INFO

CD14538BE MANUFACTURING INFO

CD14538BE PACKAGING INFO

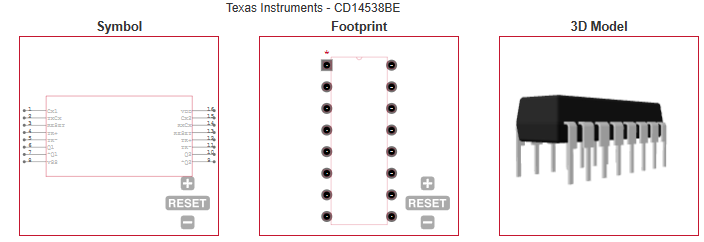

CD14538BE EACD MODELS

COUNTRY OF ORIGIN

China

Mexico

Malaysia

PARAMETRIC INFO

Logic Family	CD4000
Process Technology	CMOS
Logic Function	Monostable Multivibrator
Number of Elements per Chip	2
Minimum Operating Supply Voltage (V)	3
Maximum Operating Supply Voltage (V)	18
Typical Operating Supply Voltage (V)	3.3\|5\|9\|12\|15
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Military
Maximum High Level Output Current (mA)	-4.2(Min)
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum Propagation Delay Time @ Maximum CL (ns)	600@5V\|300@10V\|220@15V
Maximum Quiescent Current (mA)	0.1
Absolute Propagation Delay Time (ns)	600

Supplier Package	PDIP
Basic Package Type	Through Hole
Pin Count	16
Lead Shape	Through Hole
PCB	16
Tab	N/R
Pin Pitch (mm)	2.54
Package Length (mm)	19.69(Max)
Package Width (mm)	6.6(Max)
Package Height (mm)	5.08(Max) - 0.51(Min)
Package Diameter (mm)	N/R
Package Overall Length (mm)	19.69(Max)
Package Overall Width (mm)	10.92(Max)
Package Overall Height (mm)	5.08(Max)
Seated Plane Height (mm)	5.08(Max)
Mounting	Through Hole
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Plastic Dual In Line Package
Package Family Name	DIP
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	N/R
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	40
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	40
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy

Packaging	Tube
Quantity Of Packaging	25
Packaging Document	Link to Datasheet
