CD40106BM96 Texas Instruments CD40106B CMOS Hex Schmitt-Trigger Inverters

label:
2025/03/27 195
CD40106BM96 Texas Instruments CD40106B CMOS Hex Schmitt-Trigger Inverters


CATALOG
CD40106BM96 COUNTRY OF ORIGIN
CD40106BM96 PARAMETRIC INFO
CD40106BM96 PACKAGE INFO
CD40106BM96 MANUFACTURING INFO
CD40106BM96 PACKAGING INFO
CD40106BM96 ECAD MODELS
CD40106BM96 APPLICATIONS


COUNTRY OF ORIGIN
China
Mexico
Malaysia


PARAMETRIC INFO
Logic Family CD4000
Process Technology ECL
Logic Function Inverter Schmitt Trigger
Input Type Schmitt Trigger
Output Type Push-Pull
Number of Elements per Chip 6
Minimum Operating Supply Voltage (V) 3
Maximum Operating Supply Voltage (V) 18
Typical Operating Supply Voltage (V) 3.3|5|9|12|15
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Maximum Propagation Delay Time @ Maximum CL (ns) 280@5V|140@10V|120@15V
Absolute Propagation Delay Time (ns) 280
Propagation Delay Test Condition (pF) 50
Maximum High Level Output Current (mA) -4.2(Min)
Maximum Low Level Output Current (mA) 4.2(Min)
Maximum Quiescent Current (uA) 20
Typical Quiescent Current (uA) 0.04


PACKAGE INFO
Supplier Package SOIC
Basic Package Type Lead-Frame SMT
Pin Count 14
Lead Shape Gull-wing
PCB 14
Tab N/R
Pin Pitch (mm) 1.27
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
Package Height (mm) 1.5(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 8.75(Max)
Package Overall Width (mm) 6.2(Max)
Package Overall Height (mm) 1.75(Max)
Seated Plane Height (mm) 1.75(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline IC
Package Family Name SO
Jedec MS-012AB
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Pd over Ni
Terminal Base Material Cu Alloy

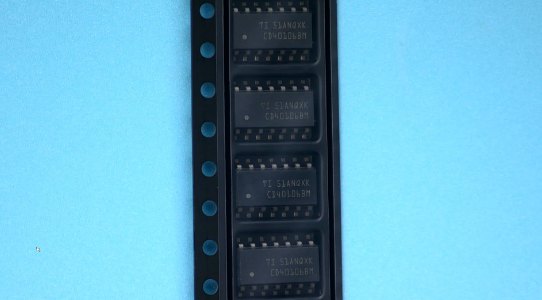

PACKAGING INFO
Packaging Suffix 96
Packaging Tape and Reel
Quantity Of Packaging 2500
Reel Diameter (in) 13
Tape Pitch (mm) 8
Tape Width (mm) 16
Component Orientation Q1
Packaging Document Link to Datasheet

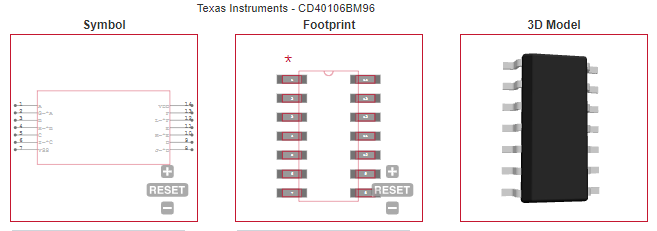

ECAD MODELS



APPLICATIONS
• Wave and Pulse Shapers
• High-Noise-Environment Systems
• Monostable Multivibrators
• Astable Multivibrators
