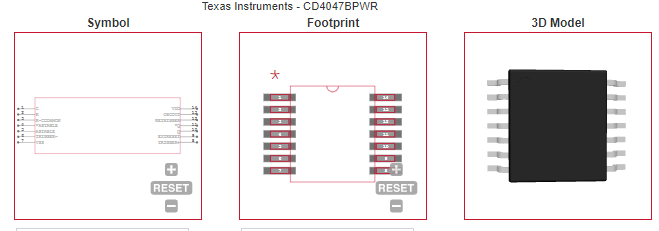

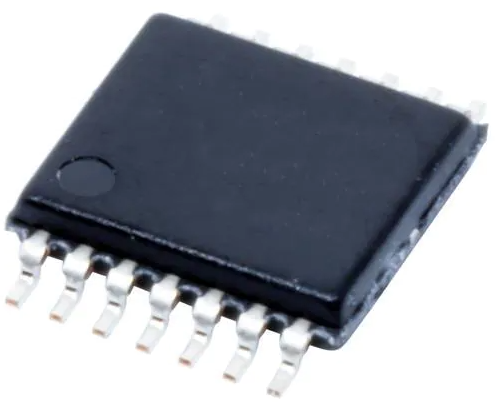

CD4047BPWR Texas Instruments IC MONO/ASTBL MULTVIBRTR 14TSSOP

2025/06/20 0

CATALOG

Malaysia

China

Taiwan (Province of China)

Logic Family	CD4000
Process Technology	CMOS
Logic Function	Monostable/Astable Multivibrator
Number of Elements per Chip	1
Minimum Operating Supply Voltage (V)	3
Maximum Operating Supply Voltage (V)	18
Typical Operating Supply Voltage (V)	3.3\|5\|9\|12\|15
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Military
Maximum High Level Output Current (mA)	-4.2(Min)
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum Propagation Delay Time @ Maximum CL (ns)	1000@5V\|450@10V\|300@15V
Maximum Quiescent Current (mA)	0.02
Absolute Propagation Delay Time (ns)	1000

Supplier Package	TSSOP
Basic Package Type	Lead-Frame SMT
Pin Count	14
Lead Shape	Gull-wing
PCB	14
Tab	N/R
Pin Pitch (mm)	0.65
Package Length (mm)	5.1(Max)
Package Width (mm)	4.5(Max)
Package Height (mm)	1.05(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5.1(Max)
Package Overall Width (mm)	6.6(Max)
Package Overall Height (mm)	1.2(Max)
Seated Plane Height (mm)	1.2(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Thin Shrink Small Outline Package
Package Family Name	SO
Jedec	MO-153AB-1
Package Outline	Link to Datasheet

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy
