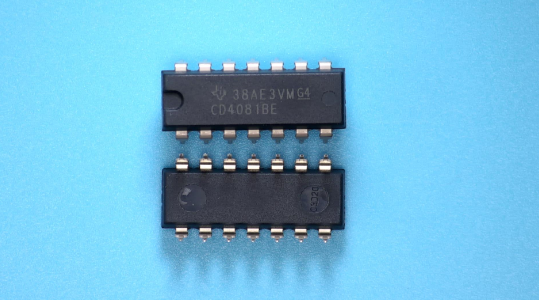

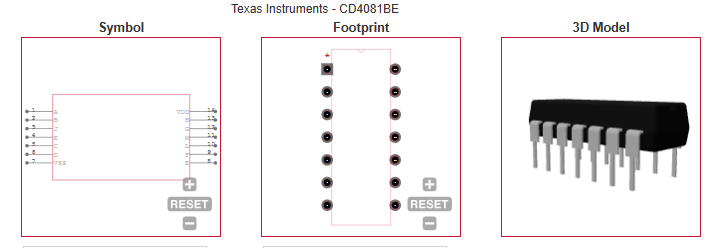

| Logic Family |
CD4000 |
| Logic Function |
AND |
| Number of Element Inputs |
2-IN |
| Number of Element Outputs |
1 |
| Number of Elements per Chip |
4 |
| Number of Output Enables per Element |
0 |
| Number of Selection Inputs per Element |
0 |
| Output Type |
Push-Pull |
| Process Technology |
CMOS |
| Minimum Operating Supply Voltage (V) |
3 |
| Maximum Operating Supply Voltage (V) |
18 |
| Typical Operating Supply Voltage (V) |
3.3|5|9|12|15 |
| Maximum High Level Output Current (mA) |
-4.2(Min) |
| Maximum Low Level Output Current (mA) |
4.2(Min) |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Maximum Propagation Delay Time @ Maximum CL (ns) |
250@5V|120@10V|90@15V |
| Absolute Propagation Delay Time (ns) |
250 |
| Propagation Delay Test Condition (pF) |
50 |
| Maximum Quiescent Current (uA) |
5 |
| Typical Quiescent Current (uA) |
0.02 |
