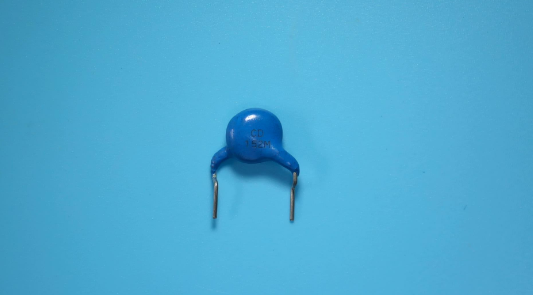

• Compliant with IEC and the safety standards of various countries.
|
• CD45 series meets reinforced insulation's safety standards. Since the withstand voltage is 4,000V AC, single-unit configuration is available for European class II devic
|
• Flame-resistant reinforced outer insulation prevents fires, electrical shock, and other potential hazards.
|
• Conform to RoHS directive due to lead(Pb) free of lead-wire and internal solder material.
|
• Compatible with halogen-free external resin coating.
|
|
| CATALOG |
CD45-E2GA152M-NKA COUNTRY OF ORIGIN
|
CD45-E2GA152M-NKA PARAMETRIC INFO
|
CD45-E2GA152M-NKA PACKAGE INFO
|
CD45-E2GA152M-NKA MANUFACTURING INFO
|
CD45-E2GA152M-NKA PACKAGING INFO
|

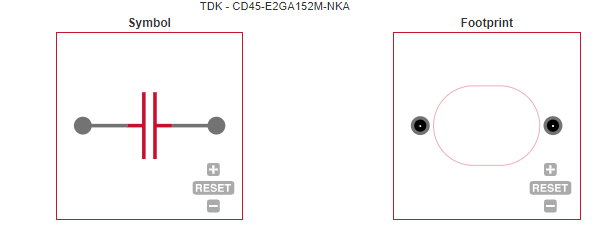

CD45-E2GA152M-NKA ECAD MODELS
|
CD45-E2GA152M-NKA APPLICATION
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Capacitance Value |
0.0015uF |
| Voltage |
400VAC|440VAC |
| Tolerance |
20% |
| Type |
Ceramic Disc |
| Dielectric |
E |
| Suppression Class |
X1/Y1 |
| Maximum Operating Temperature (°C) |
125 |
| Construction |
Disc |
| Microwave Application |
No |
| Wire Form |
Vertical Kinked |
| Operating Temperature (°C) |
-40 to 125 |
| Minimum Operating Temperature (°C) |
-40 |
| Lead Diameter (mm) |
0.6 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| AC Rated Voltage (VAC) |
440 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
N/R |
| Mounting |
Through Hole |
| Termination Style |
Radial |
| Terminal Pitch (mm) |
10 |
| Product Length (mm) |
N/R |
| Product Depth (mm) |
6(Max) |
| Product Height (mm) |
N/R |
| Product Diameter (mm) |
8(Max) |
| Seated Plane Height (mm) |
12(Max) |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
N/R |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/R |
| Diameter Tolerance (mm) |
N/A |
| Size (mm) |
8 X 6 |
| Maximum Product Length (mm) |
N/R |
| Maximum Product Depth (mm) |
6 |
| Maximum Product Height (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Lead Finish(Plating) |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Bulk |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| APPLICATION |
| • Y capacitor for AC adapter, charger, power supplies |
| |
