CL21B225KAFNNNE COUNTRY OF ORIGIN
|
CL21B225KAFNNNE PARAMETRIC INFO
|
CL21B225KAFNNNE PACKAGE INFO
|
CL21B225KAFNNNE MANUFACTURING INFO
|
CL21B225KAFNNNE PACKAGING INFO
|
CL21B225KAFNNNE ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Korea (Republic of)
|
|
PARAMETRIC INFO
|
| Capacitance Value |
2.2uF |
| Voltage |
25VDC |
| Tolerance |
10% |
| Dielectric |
X7R |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
Yes |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Equivalent Series Resistance Type |
Low |
| DC Rated Voltage (VDC) |
25 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Maximum Storage Temperature (°C) |
40 |
| Minimum Storage Temperature (°C) |
0 |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
0805 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
2 |
| Product Depth (mm) |
1.25 |
| Product Height (mm) |
1.25 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
0.016523 |
| Number of Terminals |
2 |
| Size (mm) |
2 X 1.25 X 1.25 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/A |
|
|

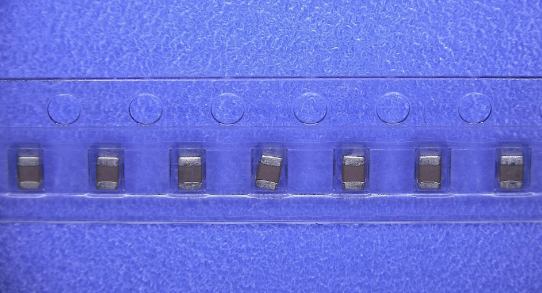

PACKAGING INFO
|
| Packaging Suffix |
E |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
|

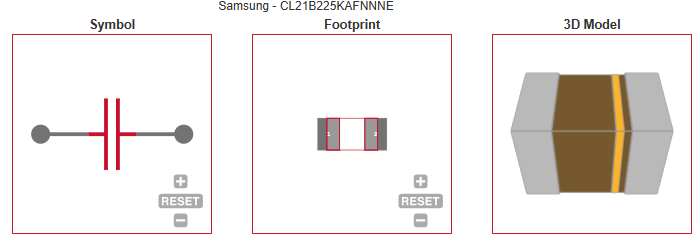

ECAD MODELS
|
|
|
