| CM3440Z171R-10 COUNTRY OF ORIGIN |
CM3440Z171R-10 PARAMETRIC INFO
|
CM3440Z171R-10 PACKAGE INFO
|
CM3440Z171R-10 MANUFACTURING INFO
|
CM3440Z171R-10 PACKAGING INFO
|
CM3440Z171R-10 ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| type |
Power Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Impedance (Ohm) |
170 |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
20 |
| Typical Temperature Rise (°C) |
40 |
| Maximum DC Resistance (Ohm) |
0.001 |
| Voltage Rating |
100VDC |
| Withstand Voltage |
1215VDC |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Install |
Surface Mount |
| Product Length (mm) |
11.05 |
| Product Depth (mm) |
8.64 |
| Product Height (mm) |
10.49 |
| Case Size |
not applicable |
| Product Weight (g) |
not applicable |
| Terminal Pitch (mm) |
2.54 |
| Package Type |
SMD |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
250 |
| Reflow soldering time (seconds) |
5 to 10 |
| Number of reflow cycles |
not applicable |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
Ni |
| Terminal Base Material |
not applicable |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| Packing quantity |
375 |
| Reel Diameter (in) |
13 |
| packaging type file |
Link to datasheet |
|
|

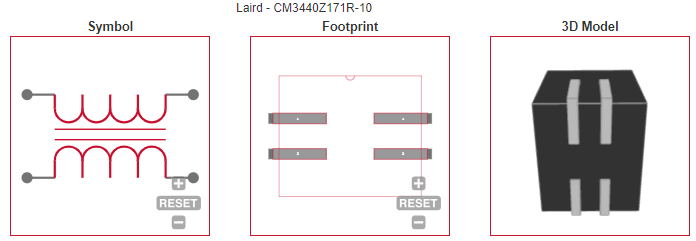

ECAD MODELS
|
|
|
