• 1500Vrms Input/Output Isolation
|
• Small 4-Pin SOP Package
|
• Low Drive Power Requirements
|
• High Reliability
|
• No EMI/RFI Generation
|
| • Halogen-Free
|
| • Tape & Reel Version Available |
| • Flammability Rating UL 94 V-0 |
|
| CATALOG |
| CPC1008NTR COUNTRY OF ORIGIN |
CPC1008NTR PARAMETRIC INFO
|
CPC1008NTR PACKAGE INFO
|
CPC1008NTR MANUFACTURING INFO
|

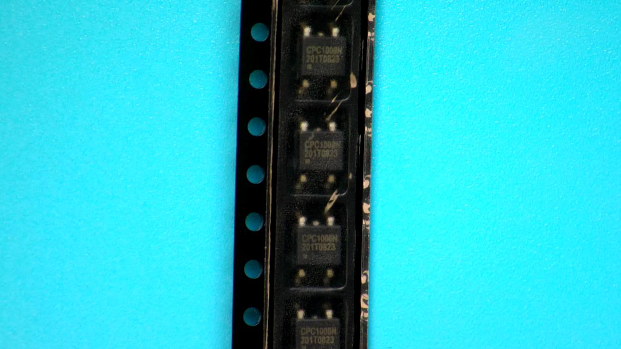

CPC1008NTR PACKAGING INFO
|
CPC1008NTR ECAD MODELS
|
CPC1008NTR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
| Mexico |
|
PARAMETRIC INFO
|
| Input Type |
DC |
| Maximum Input Voltage (V) |
1.5 |
| Maximum Output Voltage (V) |
100 |
| Maximum Input Current (mA) |
50 |
| Maximum Output Current (A) |
0.15 |
| I/O Isolation Voltage (V) |
1500(RMS) |
| Output Device |
MOSFET |
| Output Type |
AC|DC |
| Maximum Turn-Off Time (ms) |
1 |
| Maximum On-State Voltage Drop (V) |
1.5 |
| Maximum On Resistance (Ohm) |
8 |
| Maximum Turn-On Time (ms) |
2 |
| Maximum Off-State Leakage Current (uA) |
1 |
| Circuit Arrangement |
1 Form A |
| Maximum Power Dissipation (mW) |
400 |
| Typical Input to Output Capacitance (pF) |
1 |
| Minimum Input Voltage (V) |
0.9 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
4.09 |
| Package Width (mm) |
3.81 |
| Package Height (mm) |
2.08(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.18(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Small Outline Package |
| Package Family Name |
SO |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Instrumentation
|
| • Multiplexers
|
• Data Acquisition
|
• Electronic Switching
|
• I/O Subsystems
|
| • Meters (Watt-Hour, Water, Gas) |
| • Medical Equipment—Patient/Equipment Isolation |
| • Security Systems |
| • Industrial Controls |
| • Reed Relay Replacement |
| |
