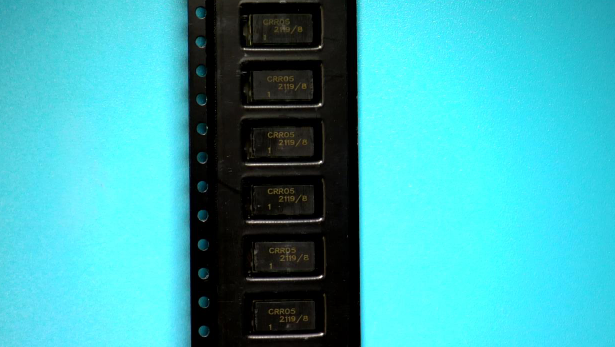

CRR05-1A MEDER electronic (Standex) RELAY REED SPST 500MA 5V

label:
2023/11/2 288



CATALOG
CRR05-1A PARAMETRIC INFO
CRR05-1A PACKAGE INFO
CRR05-1A MANUFACTURING INFO
CRR05-1A PACKAGING INFO


PARAMETRIC INFO
Type Dry
DC Coil Voltage (V) 5
Coil Resistance (Ohm) 150
Coil Current (mA) 33.33
Contact Arrangement SPST-NO
Contact Form 1 Form A
Maximum AC Switching Voltage (V) 170
Maximum DC Switching Voltage (V) 170
Maximum Switching Current (A) 0.5
Maximum Switching Power 10W
Maximum Carry Current (A) 0.5
Maximum Contact Resistance (mOhm) 250
Isolation Across Contacts 210VDC
Isolation Across Coil and Contacts 1.5KVDC
Insulation Resistance (Ohm) 10T
Maximum Pick-Up Voltage 3.75VDC
Minimum Dropout Voltage 0.75VDC
Operate Time (ms) 0.1
Release Time (ms) 0.02
Relay Construction Non-Latching
Seal Sealed
Push to Test Button No
LED Indicator No
Coil Suppression Diode No
Maximum Operating Temperature (°C) 125
Minimum Operating Temperature (°C) -40
Shielding No
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 125


PACKAGE INFO
Mounting Surface Mount
Termination Style Gull Wing
Number of Terminals 10
Package Type N/A
Product Length (mm) 8.6
Product Depth (mm) 4.4
Product Height (mm) 3.55
Product Weight (g) N/A
Terminal Pitch (mm) N/A


MANUFACTURING INFO
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 5
Number of Reflow Cycle N/A
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Document Link to Datasheet
