CS4207-CNZ PARAMETRIC INFO
|
CS4207-CNZ PACKAGE INFO
|
CS4207-CNZ MANUFACTURING INFO
|
CS4207-CNZ PACKAGING INFO
|

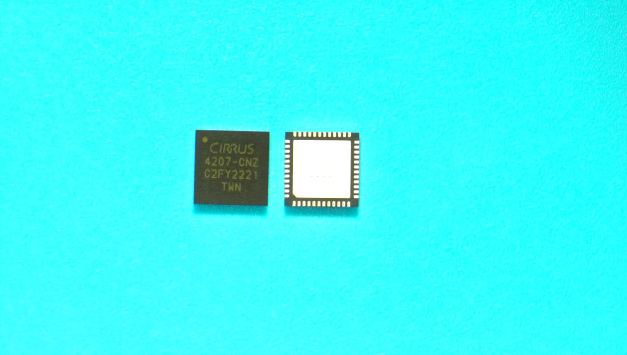

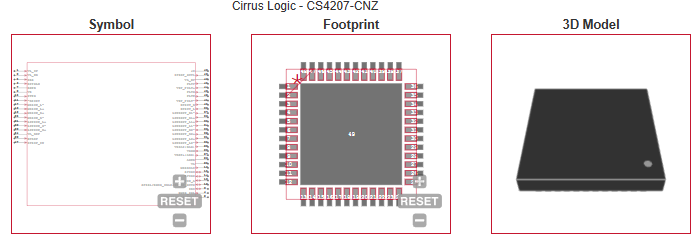

CS4207-CNZ ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
PCM |
| ADC/DAC Resolution (bit) |
24 |
| Number of ADCs |
4 |
| Number of DACs |
6 |
| Number of Channels |
4ADC / 6DAC |
| Number of ADC Inputs |
2 |
| Number of DAC Outputs |
2 |
| Maximum Power Dissipation (mW) |
7 |
| Total Harmonic Distortion Plus Noise (THD+N) (dB) |
-94 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Power Supply Type |
Analog|Digital |
| Typical Operating Supply Voltage (V) |
1.5|1.8|3.3|5 |
| Operating Supply Voltage (V) |
1.5|1.8|3.3|5 |
| Minimum Operating Supply Voltage (V) |
1.42|2.97 |
| Maximum Operating Supply Voltage (V) |
1.89|5.25 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
6 |
| Package Width (mm) |
6 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
|
