• Advanced multibit delta-sigma architecture
|
• 109-dB dynamic range
|
• -91-dB THD+N
|
• 24-bit conversion
|
• Supports audio sample rates up to 192 kHz
|
|
| CATALOG |
CS4350-DZZR COUNTRY OF ORIGIN
|
CS4350-DZZR PARAMETRIC INFO
|
CS4350-DZZR PACKAGE INFO
|
CS4350-DZZR MANUFACTURING INFO
|
CS4350-DZZR PACKAGING INFO
|
CS4350-DZZR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Architecture |
Delta-Sigma |
| Resolution |
24bit |
| Number of DAC Channels |
2 |
| Number of Outputs per Chip |
2 |
| Conversion Rate |
192ksps |
| Converter Type |
Audio |
| Output Type |
Voltage |
| Voltage Reference |
Internal |
| Digital Interface Type |
Serial |
| Output Polarity |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Supplier Temperature Grade |
Automotive |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
3.14 |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Digital Supply Support |
No |
| Maximum Power Dissipation (mW) |
290 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
Gull-wing |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
7.8 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
0.9 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153AD |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

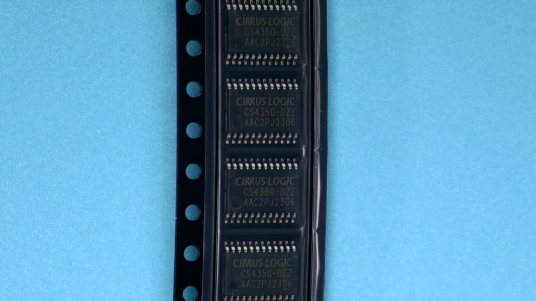

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
|
|

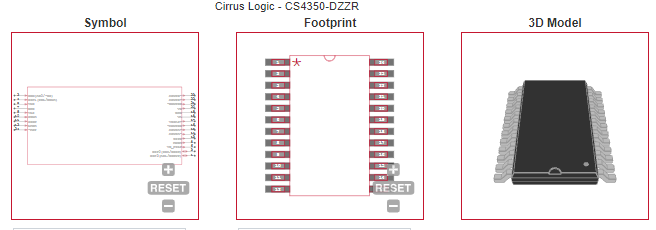

ECAD MODELS
|
|
|
