• Crystal unit for automotive electronics
|
• Improved solderability
|
• Improved mounting stability with 4 terminals
|
• Improved anti-noise performance with GND terminal
|
• Using ceramic package resulting in high reliability
|
• Small and low profile
|
• Improved rust prevention performance
|
• Reflow compatible
|
• Highly reliable solder junction (3000 heat cycles -40 to +125°C)
|
• AEC-Q200 qualitied
|
|
| CATALOG |
CX3225SA40000D0PTWCC PARAMETRIC INFO
|
CX3225SA40000D0PTWCC PACKAGE INFO
|

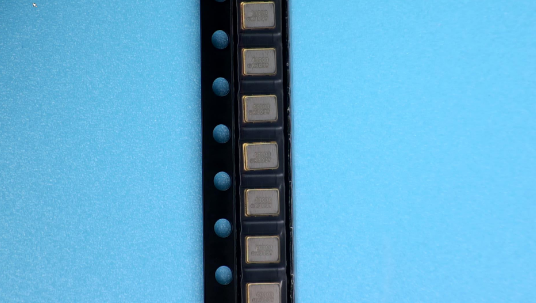

CX3225SA40000D0PTWCC PACKAGING INFO
|
CX3225SA40000D0PTWCC ECAD MODELS
|
CX3225SA40000D0PTWCC APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Crystal |
| Standard Frequency (MHz) |
40 |
| Frequency Tolerance (ppm) |
±50 |
| Frequency Stability (ppm) |
±200 |
| Load Capacitance (pF) |
8 |
| Mode of Oscillation |
Fundamental |
| Series Resistance (Ohm) |
50 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Pin Count |
4 |
| PCB |
4 |
| Tab |
N/R |
| Package Length (mm) |
3.2 |
| Package Width (mm) |
2.5 |
| Package Height (mm) |
0.75 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Ceramic |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• ECU
|
• TPMS
|
• High-Speed Automotive Network (Flex RayTM etc.)
|
|
