■ Integrated phase-locked loop (PLL)
|
■ Commercial and industrial operation
|
■ Flash programmable
|
■ Field programmable
|
■ Two-wire I2C interface
|
■ Low skew, low jitter, high accuracy outputs
|
■ 3.3 V operation with 2.5 V output option
|
|
| CATALOG |
CY22150FZXC COUNTRY OF ORIGIN
|
CY22150FZXC PARAMETRIC INFO
|
CY22150FZXC PACKAGE INFO
|
CY22150FZXC MANUFACTURING INFO
|
CY22150FZXC PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
|
PARAMETRIC INFO
|
| Number of Outputs per Chip |
6 |
| Clock Input Frequency (MHz) |
1 to 133 |
| Maximum Output Frequency (MHz) |
200 |
| Typical Duty Cycle (%) |
50 |
| Input Logic Level |
CMOS|Crystal |
| Output Logic Level |
CMOS |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Programmability |
Yes |
| Minimum Operating Supply Voltage (V) |
3.135 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.465 |
| Maximum Power Dissipation (mW) |
450 |
| Number of Clock Inputs |
1 |
| Spread Spectrum |
No |
|
|
PACKAGE INFO
|

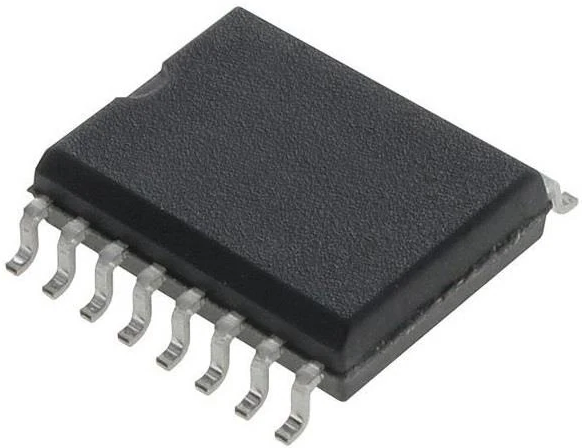

| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
960 |
|
|
