• High speed❐ tAA = 10 ns / 15 ns
|
• Low active and standby currents❐ Active current: ICC = 38-mA typical❐ Standby current: ISB2 = 6-mA typical
|
• Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and4.5 V to 5.5 V
|
| • 1.0-V data retention
|
| • TTL-compatible inputs and outputs |
| • Pb-free 44-pin SOJ, 44-pin TSOP II, and 48-ball VFBGA packages |
| |
| CATALOG |
| CY7C1041GN-10ZSXIT COUNTRY OF ORIGIN |
CY7C1041GN-10ZSXIT PARAMETRIC INFO
|
CY7C1041GN-10ZSXIT PACKAGE INFO
|
CY7C1041GN-10ZSXIT PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Thailand |
| Taiwan (Province of China) |
| China |
| Philippines |
|
PARAMETRIC INFO
|
| Density (bit) |
4M |
| Timing Type |
Asynchronous |
| Data Rate Architecture |
SDR |
| Maximum Access Time (ns) |
10 |
| Typical Operating Supply Voltage (V) |
5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Density in Bits (bit) |
4194304 |
| Number of Bits per Word (bit) |
16 |
| Number of Ports |
1 |
| Number of Words |
256K |
| Maximum Operating Current (mA) |
45 |
| Number of I/O Lines (bit) |
16 |
| Address Bus Width (bit) |
18 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Process Technology |
65nm, CMOS |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOP-II |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
44 |
| Lead Shape |
Gull-wing |
| PCB |
44 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
18.52(Max) |
| Package Width (mm) |
10.26(Max) |
| Package Height (mm) |
1.04(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
18.52(Max) |
| Package Overall Width (mm) |
11.94(Max) |
| Package Overall Height (mm) |
1.19(Max) |
| Seated Plane Height (mm) |
1.19(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Description |
Thin Small Outline Package (Type II) |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
|
|

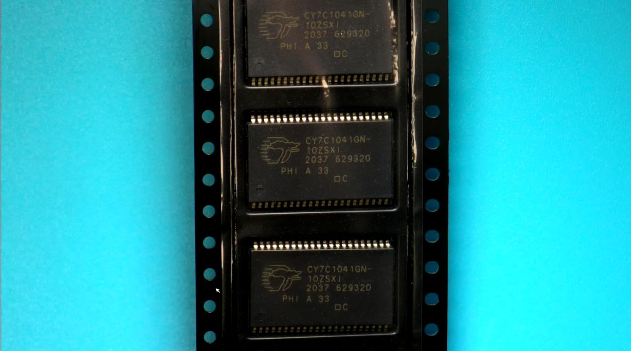

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
