• USB 2.0-USB-IF certified (TID # 40000085)
|
• 12-bit Programmable Interval Timer with interrupts
|
• Advanced development tools based on Cypress PSoC® tools
|
• Watchdog timer (WDT)
|
• Low-voltage detection with user configurable threshold voltages
|
• Operating voltage from 4.0 V to 5.5 V DC
|
|
| CATALOG |

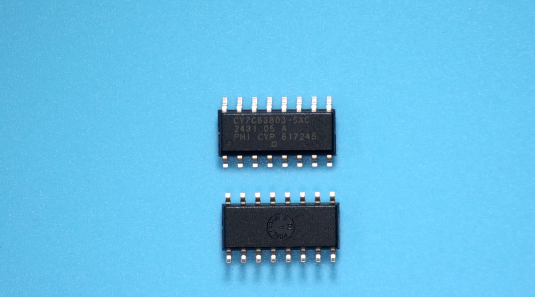

CY7C63803-SXC COUNTRY OF ORIGIN
|
CY7C63803-SXC PARAMETRIC INFO
|
CY7C63803-SXC PACKAGE INFO
|
CY7C63803-SXC MANUFACTURING INFO
|
CY7C63803-SXC PACKAGING INFO
|
CY7C63803-SXC ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
|
PARAMETRIC INFO
|
| Typical Supply Current (mA) |
10 |
| Maximum Operating Temperature (°C) |
70 |
| Maximum Operating Supply Voltage (V) |
5.5|5.25 |
| Minimum Operating Supply Voltage (V) |
4|4.35|4.75 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Storage Temperature (°C) |
90 |
| Minimum Operating Temperature (°C) |
0 |
| Minimum Storage Temperature (°C) |
-40 |
| Supplier Temperature Grade |
Commercial |
| Protocols Supported |
USB 1.1/USB 2.0 |
| Maximum Data Rate (Mbps) |
1.5225 |
| Interface Type |
Serial |
| Maximum Operating Frequency (MHz) |
24 |
| USB Speed Type |
Low Speed|Full Speed |
| Type |
USB Peripheral Controller |
| USB Transceiver |
Yes |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
9.98(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.48(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.73(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
1440 |
|
|
ECAD MODELS
|
|
| |
