• Fast Switching
|
• Key Parameters Specified @ 100°C
|
• Low Collector−Emitter Saturation Voltage
|
• Complementary Pairs Simplify Circuit Designs
|
• These Devices are Pb−Free and are RoHS Compliant*
|
|
| CATALOG |
| D45VH10G COUNTRY OF ORIGIN |
D45VH10G PARAMETRIC INFO
|
D45VH10G PACKAGE INFO
|
D45VH10G MANUFACTURING INFO
|
D45VH10G PACKAGING INFO
|
D45VH10G ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
Philippines
|
Taiwan (Province of China)
|
United States of America
|
Viet Nam
|
|
PARAMETRIC INFO
|
| Type |
PNP |
| Configuration |
Single |
| Maximum Collector-Emitter Voltage (V) |
80 |
| Maximum Emitter Base Voltage (V) |
7 |
| Maximum DC Collector Current (A) |
15 |
| Material |
Si |
| Maximum Power Dissipation (mW) |
83000 |
| Maximum Junction Ambient Thermal Resistance |
62.5°C/W |
| Maximum Junction Case Thermal Resistance |
1.5°C/W |
| Maximum Delay Time (ns) |
50 |
| Maximum Rise Time (ns) |
250 |
| Maximum Fall Time (ns) |
90 |
| Maximum Collector-Emitter Saturation Voltage (V) |
1@0.8A@8A|1.5@3A@15A |
| Maximum Base Emitter Saturation Voltage (V) |
1@0.4A@8A|1.5@0.4A@8A |
| Category |
Bipolar Power |
| Minimum DC Current Gain |
35@2A@1V|20@4A@1V |
| Number of Elements per Chip |
1 |
| Maximum Transition Frequency (MHz) |
50(Typ) |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
|
|

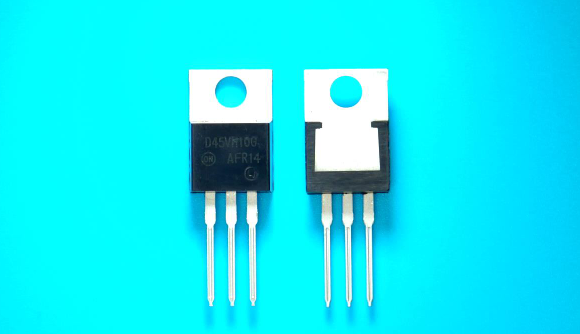

PACKAGE INFO
|
| Supplier Package |
TO-220AB |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.66(Max) |
| Package Length (mm) |
10.53(Max) |
| Package Width (mm) |
4.83(Max) |
| Package Height (mm) |
9.28(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
19.68(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Jedec |
TO-220AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
275 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
50 |
| Packaging Document |
Link to Datasheet |
|
|

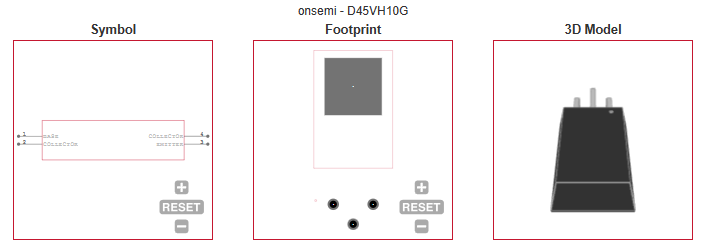

ECAD MODELS
|
|
|
