DF40C-60DP-0.4V(51) PARAMETRIC INFO
|
DF40C-60DP-0.4V(51) PACKAGE INFO
|
DF40C-60DP-0.4V(51) MANUFACTURING INFO
|
DF40C-60DP-0.4V(51) PACKAGING INFO
|
DF40C-60DP-0.4V(51) ECAD MODELS
|
|
PARAMETRIC INFO
|
| Type |
Board to Board |
| Gender |
HDR |
| Number of Contacts |
60 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
0.3 |
| Maximum Voltage Rating |
50VDC|50VAC |
| Housing Material |
Liquid Crystal Polymer |
| Housing Color |
Black |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
2 |
| Maximum Contact Resistance (mOhm) |
90 |
| Insulation Resistance (MOhm) |
50 |
| Operating Temperature (°C) |
-55 to 85 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
30 |
| Maximum Terminal Width (mm) |
0.17 |
| Minimum Storage Temperature (°C) |
-10 |
| Maximum Storage Temperature (°C) |
60 |
| Contact Plating Thickness |
0.05um |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
0.4 |
| Body Orientation |
Straight |
| Mounting |
Surface Mount |
| Product Length (mm) |
13.52 |
| Product Depth (mm) |
2.97 |
| Product Height (mm) |
1.14 |
| Length Tolerance (mm) |
±0.2 |
| Depth Tolerance (mm) |
±0.2 |
| Height Tolerance (mm) |
±0.15 |
| Product Weight (g) |
0.045 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Phosphor-Bronze |
| Number of Wave Cycles |
N/R |
|
|

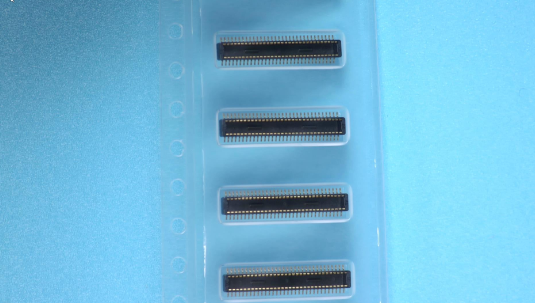

PACKAGING INFO
|
| Packaging Suffix |
51 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Reel Diameter (in) |
14.96 |
| Reel Width (mm) |
25.5 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
24 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

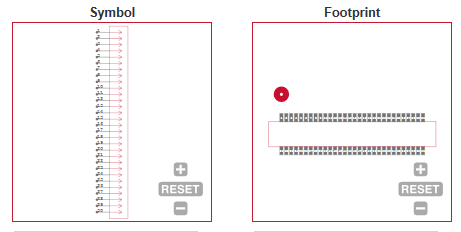

ECAD MODELS
|
|
|
