DLW5BTM102SQ2L COUNTRY OF ORIGIN
|
DLW5BTM102SQ2L PARAMETRIC INFO
|
DLW5BTM102SQ2L PACKAGE INFO
|
DLW5BTM102SQ2L MANUFACTURING INFO
|
DLW5BTM102SQ2L PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Signal Line/Power Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Impedance (Ohm) |
1k |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
2 |
| Maximum DC Resistance (Ohm) |
0.034 |
| Minimum Insulation Resistance (Ohm) |
10M |
| Voltage Rating |
50VDC |
| Withstand Voltage |
125VDC |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Maximum Product Length (mm) |
5.3 |
| Maximum Product Depth (mm) |
5.3 |
| Maximum Product Height (mm) |
2.5 |
| Case Size |
2020 |
| Product Weight (g) |
0.21 |
| Package Type |
SMD |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

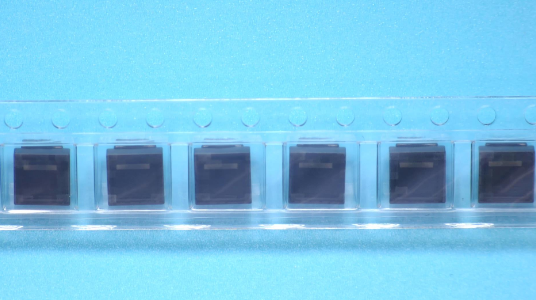

PACKAGING INFO
|
| Packaging Suffix |
L |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
700 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
