COUNTRY OF ORIGIN
|
Japan
|
|
PARAMETER INFORMATION
|
| type |
Signal Line/Power Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Impedance (Ohm) |
1.4k |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
1.5 |
| Maximum DC Resistance (Ohm) |
0.056 |
| Minimum Insulation Resistance (Ohm) |
10M |
| Voltage Rating |
50VDC |
| Withstand Voltage |
125VDC |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Terminal Width (mm) |
1.6 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGING INFORMATION
|
| Install |
Surface Mount |
| Maximum Product Length (mm) |
5.3 |
| Maximum Product Depth (mm) |
5.3 |
| Maximum Product Height (mm) |
2.5 |
| Case Size |
2020 |
| Product Weight (g) |
0.21 |
| Terminal Pitch (mm) |
2.2 |
|
|
MANUFACTURING INFORMATION
|
| MSL |
not applicable |
| Maximum reflow temperature (°C) |
260 |
| Reflow time (seconds) |
10 |
| Reflow cycles |
2 |
| standard |
not applicable |
| Reflow temperature source |
Link to data sheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
SnCu |
| Plating materials |
not applicable |
| Terminal base material |
not applicable |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFORMATION
|
| Packaging Suffix |
L |

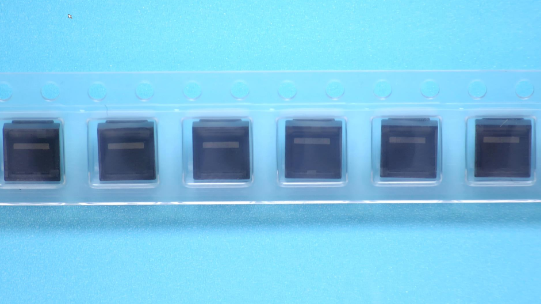

| Package |
Tape and Reel Packaging |
| Packing quantity |
700 |
| Reel Diameter (in) |
7.09 |
| Package Type File |
Link to data sheet |
| Tape Type |
Embossed |
|
|

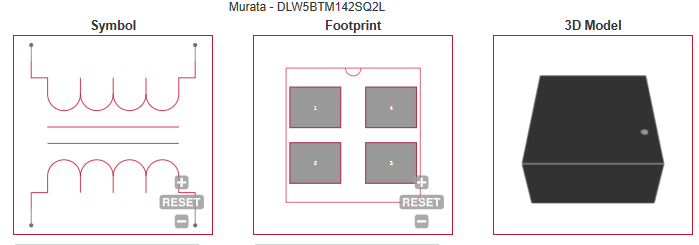

ECAD MODELS
|
|
|
