DM3AT-SF-PEJM5 Hirose Connector CONN MICRO SD CARD PUSH-PUSH R/A

label:
2023/12/15 301


◆ Common to the entire Series
   . Extremely small in size Small external dimensions and the above-the-board height make the connectors the smallest on the market.
   . Reverse card insertion protection Unique card slot design (patented) protects the connector from damage when the card is attempted to be inserted in reverse, allowing it to re-inserted correctly.
   . Effective ground and shield configuration 4-connection points of the metal cover to the printed circuit board assures secure connection of the ground circuit and provides EMI protection.
   . Rigid and strong construction Despite its small size, high-strengths materials used in the connectors produced a strong and rigid structure.
   . Card detection switch The card detection switch is Normally Open
◆ DM3AT and DM3BT (Push - Push, with ejection mechanism)
   · Card fall-out prevention Built-in card tray and the unique push insertion-push ejection mechanism (patented) prevent accidental card ejection or fallout.
   ·  Despite its small size the connectors will eject the card to a distance of 4.0mm, allowing easy hold and removal of the card.
   · Exposed termination leads Easy inspection and rework of the solder termination joints.
◆ DM3CS (Hinge, Push-Pull, manual, without ejection mechanism)
   · Simple and reliable card insertion Hinged metal cover provides location and guides the card during the insertion / removal. Closing of the cover confirms the electrical and mechanical connection with a tactile click sensation.
   · Reliable contact with the card contact pads Unique contact design and card slide action will clean the contact areas of the card.
   · Accessible termination areas Contact solder terminations may be inspected and reworked.
◆ DM3D (Push -Pull, manual, without ejection mechanism)
   · Partial card insertion hold Card will not fall-out even when it is not fully inserted. Full insertion and electrical / mechanical connection is confirmed with a distinct tactile feel.
   · Accessible termination areas An inner lead system that can be reworked is used in this design. Contact solder terminations may be inspected and reworked.


CATALOG
DM3AT-SF-PEJM5 COUNTRY OF ORIGIN
DM3AT-SF-PEJM5 PARAMETRIC INFO
DM3AT-SF-PEJM5 PACKAGE INFO
DM3AT-SF-PEJM5 MANUFACTURING INFO
DM3AT-SF-PEJM5 PACKAGING INFO
DM3AT-SF-PEJM5 ECAD MODELS


COUNTRY OF ORIGIN
Japan
China


PARAMETRIC INFO
Type Micro SD Card
Gender HDR
Number of Contacts 8
Termination Method Solder
Tradename microSD™
Maximum Current Rating (A) 0.5
Maximum Voltage Rating 125VAC
Ejector Type Push-Push
Terminal Plating Gold
Contact Material Copper Alloy
Contact Plating Gold
Housing Material Liquid Crystal Polymer
Insulation Resistance (MOhm) 1000
Maximum Contact Resistance (mOhm) 100
Number of Rows 1
Operating Temperature (°C) -25 to 85
Minimum Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 85
Mating Cycle (Cycles) 10000
PCB Mounting Side Normal
Maximum Terminal Width (mm) 0.45
Maximum Terminal Coplanarity (mm) 0.1
Minimum Storage Temperature (°C) -40
Maximum Storage Temperature (°C) 85

PACKAGE INFO
Terminal Pitch (mm) 1.1
Body Orientation Right Angle
Mounting Surface Mount
Product Length (mm) 13.85
Product Depth (mm) 15.95
Product Height (mm) 1.68
Length Tolerance (mm) ±0.2
Depth Tolerance (mm) ±0.2
Height Tolerance (mm) ±0.15
Product Weight (g) 0.56

MANUFACTURING INFO
MSL N/A
Maximum Reflow Temperature (°C) 250
Reflow Solder Time (Sec) N/A
Number of Reflow Cycle 2
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material N/A
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R

PACKAGING INFO
Packaging Tape and Reel
Quantity Of Packaging 1500
Reel Diameter (in) 14.96
Reel Width (mm) 32.4
Tape Pitch (mm) 20
Tape Width (mm) 32
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Packaging Document Link to Datasheet
Tape Type Embossed

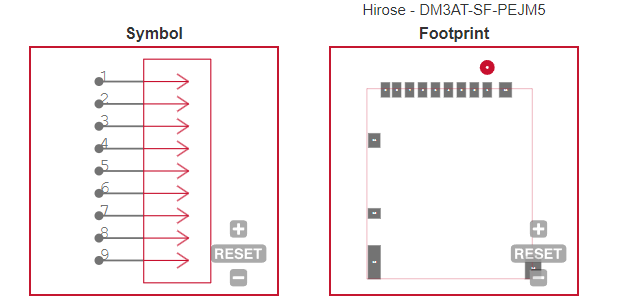

ECAD MODELS
