• Common to the entire Series
|
• Reverse card insertion protection
|
• Effective ground and shield configuration
|
| • DM3AT and DM3BT (Push - Push, with ejection mechanism)
|
| • DM3CS (Hinge, Push-Pull, manual, without ejection mechanism) |
| • DM3D (Push -Pull, manual, without ejection mechanism) |
|
| CATALOG |
| DM3D-SF COUNTRY OF ORIGIN |
DM3D-SF PARAMETRIC INFO
|
DM3D-SF PACKAGE INFO
|
DM3D-SF MANUFACTURING INFO
|
DM3D-SF PACKAGING INFO
|
DM3D-SF ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| Japan |
|
PARAMETRIC INFO
|
| type |
Micro SD Card |
| Gender |
HDR |
| Number of Contacts |
8 |
| Termination Method |
Solder |
| Tradename |
microSD™ |
| Maximum Current Rating (A) |
0.5 |
| Maximum Voltage Rating |
125VAC |
| Ejector Type |
Push Pull |
| Terminal Plating |
Gold |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Housing Material |
Liquid Crystal Polymer |
| Insulation Resistance (MOhm) |
1000 |
| Maximum Contact Resistance (mOhm) |
100 |
| Number of Rows |
1 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycles (Cycles) |
5000 |
| PCB Mounting Side |
Normal |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
1.1 |
| Body Orientation |
Right Angle |
| Install |
Surface Mount |
| Product Length (mm) |
11.95 |
| Product Depth (mm) |
11.45 |
| Product Height (mm) |
1.55 |
|
|
MANUFACTURING INFO
|
| MSL |
not applicable |
| Maximum reflow temperature (°C) |
250 |
| Reflow soldering time (seconds) |
not applicable |
| Number of reflow cycles |
2 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|

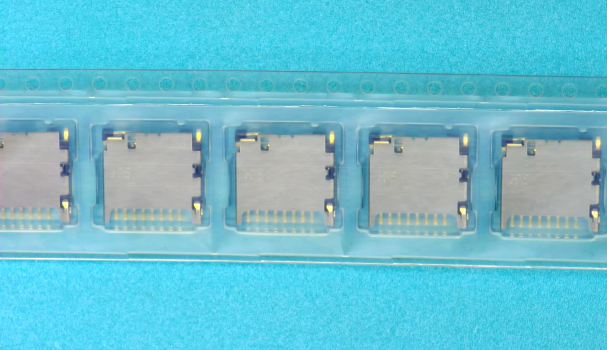

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
2000 |
| packaging type file |
Link to datasheet |
| Tape Type |
Embossed |
|
|

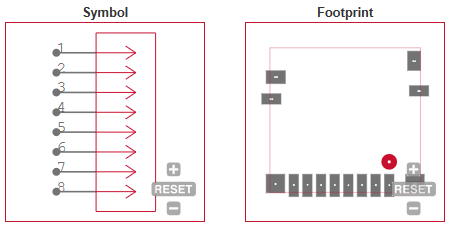

ECAD MODELS
|
|
