DRV8212DRLR Texas Instruments DRV8212 11-V H-Bridge Motor Driver with PWM, PH/EN, and Half-Bridge Control Interfaces and Low-Power Sleep Mode


• N-channel H-bridge motor driver– MOSFET on-resistance: HS + LS 280 mΩ– Drives one bidirectional brushed DC motor– Two unidirectional brushed DC motors– One single- or dual-coil latching relay– Push-pull and bistable solenoids– Other resistive, inductive, or LED loads
• 1.65-V to 11-V operating supply voltage range
• High output current capability:– Full-bridge: 4-A peak– Half-bridge: 4-A peak per output– Parallel half-bridge: 8-A peak
• Multiple interfaces for flexibility and reduced GPIO
• Standard PWM Interface (IN1/IN2)
• Supports 1.8-V, 3.3-V, and 5-V logic inputs
• Ultra low-power sleep mode– <84.5 nA @ VVM = 5 V, VVCC = 3.3 V, TJ= 25°C– Timed autosleep mode to reduce GPIO
• Protection features– Undervoltage lockout (UVLO)– Overcurrent protection (OCP)– Thermal shutdown (TSD)
• Family of devices. See Device Comparison for details.– DRV8210: 1.65-11 V, 1 Ω, multiple interfaces– DRV8210P: Sleep pin, PWM interface– DRV8212: 1.65-11 V, 280 mΩ, multiple interfaces– DRV8212P: Sleep pin, PWM interface– DRV8220: 4.5-18 V, 1 Ω, multiple interfaces


CATALOG
DRV8212DRLR COUNTRY OF ORIGIN
DRV8212DRLR PARAMETRIC INFO
DRV8212DRLR PACKAGE INFO
DRV8212DRLR PACKAGING INFO
DRV8212DRLR ECAD MODELS


COUNTRY OF ORIGIN
Philippines
China
Thailand


PARAMETRIC INFO
Type Motor Driver
Maximum Operating Current (mA) 11
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Maximum On Resistance (Ohm) 0.14(Typ)
Minimum Operating Supply Voltage (V) 1.65
Operating Supply Voltage (V) 1.65 to 11
Maximum Operating Supply Voltage (V) 11
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Output Configuration H-Bridge
Control Interface Hardware|PWM
Maximum Peak Output Current (A) 4
Motor Type Brushed DC Motor


PACKAGE INFO
Supplier Package SOT-563
Pin Count 6
PCB 6
Tab N/R
Package Length (mm) 1.7(Max)
Package Width (mm) 1.3(Max)
Package Height (mm) 0.55(Max)
Package Diameter (mm) N/R
Mounting Surface Mount
Package Family Name SOT
Package Outline Link to Datasheet


PACKAGING INFO

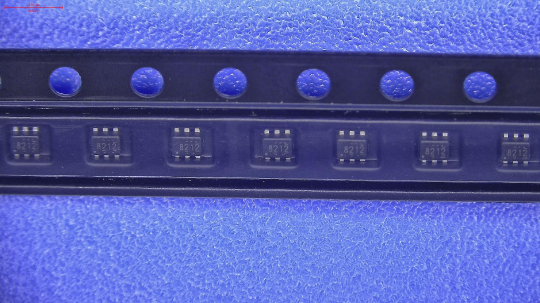

Packaging Tape and Reel

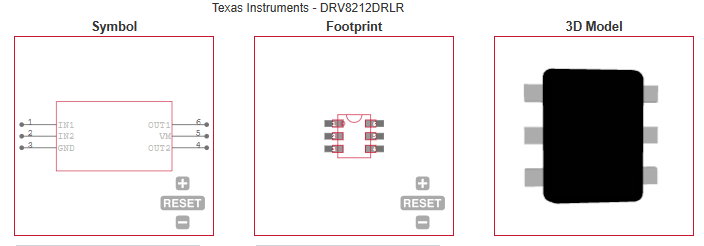

ECAD MODELS
