• Triple Half-Bridge Gate Driver
– Drives 3 High-Side and 3 Low-Side N-Channel
MOSFETs (NMOS)
|
• Smart Gate Drive Architecture
– Adjustable Slew Rate Control
– 10-mA to 1-A Peak Source Current
– 20-mA to 2-A Peak Sink Current
|
• Integrated Gate Driver Power Supplies
– Supports 100% PWM Duty Cycle
– High-Side Charge Pump
– Low-Side Linear Regulator
|
• 6 to 60-V Operating Voltage Range
|
• Optional Integrated Buck Regulator
– LMR16006X SIMPLE SWITCHER®
– 4 to 60-V Operating Voltage Range
– 0.8 to 60-V, 600-mA Output Capability
|
• Optional Integrated Triple Current Sense
Amplifiers (CSAs)
– Adjustable Gain (5, 10, 20, 40 V/V)
– Bidirectional or Unidirectional Support
|
• SPI and Hardware Interface Available
|
• 6x, 3x, 1x, and Independent PWM Modes
|
• Supports 1.8-V, 3.3-V, and 5-V Logic Inputs
|
• Low-Power Sleep Mode (12 µA)
|
• Linear Voltage Regulator, 3.3 V, 30 mA
|
• Compact QFN Packages and Footprints
|
• Efficient System Design With Power Blocks
|
• Integrated Protection Features
– VM Undervoltage Lockout (UVLO)
– Charge Pump Undervoltage (CPUV)
– MOSFET Overcurrent Protection (OCP)
– Gate Driver Fault (GDF)
– Thermal Warning and Shutdown (OTW/OTSD)
– Fault Condition Indicator (nFAULT)
|
|
| CATALOG |
DRV8323RSRGZR COUNTRY OF ORIGIN
|
DRV8323RSRGZR PARAMETRIC INFO
|
DRV8323RSRGZR PACKAGE INFO
|
DRV8323RSRGZR MANUFACTURING INFO
|
DRV8323RSRGZR PACKAGING INFO
|
DRV8323RSRGZR ECAD MODELS
|
DRV8323RSRGZR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Maximum Operating Current (mA) |
14 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
6 |
| Operating Supply Voltage (V) |
6 to 60 |
| Maximum Operating Supply Voltage (V) |
60 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Output Configuration |
Triple Half Bridge |
| Control Interface |
PWM |
| Maximum Peak Output Current (A) |
2 |
| Motor Type |
Brushless DC Motor |
| Number of Phases |
3 |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7.15(Max) |
| Package Width (mm) |
7.15(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
7.15(Max) |
| Package Overall Width (mm) |
7.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
MO-220 |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

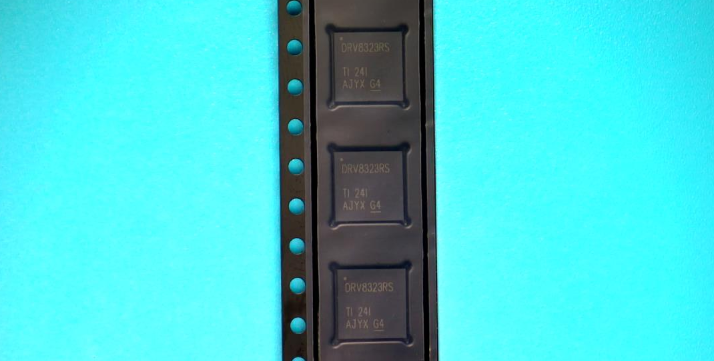

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

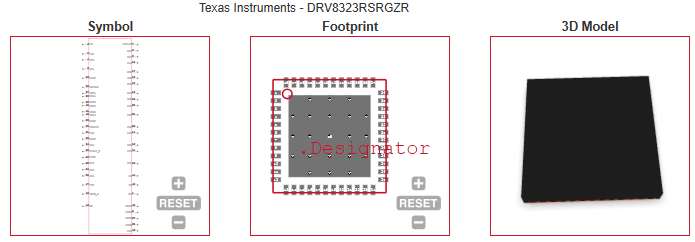

ECAD MODELS
|
|
|
APPLICATIONS
|
• Brushless-DC (BLDC) Motor Modules and PMSM
|
| • Fans, Pumps, and Servo Drives |
• E-Bikes, E-Scooters, and E-Mobility
|
| • Cordless Garden and Power Tools, Lawnmowers |
| • Cordless Vacuum Cleaners |
•Drones, Robotics, and RC Toys
|
•Industrial and Logistics Robots
|
| |
