• H-Bridge Motor Driver– Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads
|
• Wide 6.5-V to 45-V Operating Voltage
|
• 565-mΩ Typical RDS(on) (HS + LS)
|
| • 3.6-A Peak Current Drive |
| • PWM Control Interface |
| • Integrated Current Regulation |
| • Low-Power Sleep Mode |
| • Fault Status Output Pin |
| • Small Package and Footprint– 8-Pin HSOP With PowerPAD™– 4.9 × 6 mm |
| |
| CATALOG |
| DRV8872DDA COUNTRY OF ORIGIN |
DRV8872DDA PARAMETRIC INFO
|
DRV8872DDA PACKAGE INFO
|
DRV8872DDA MANUFACTURING INFO
|
DRV8872DDA PACKAGING INFO
|
DRV8872DDA EACD MODELS
|
| DRV8872DDA APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| Mexico |
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
6.5 |
| Operating Supply Voltage (V) |
6.5 to 56 |
| Maximum Operating Supply Voltage (V) |
45 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Motor Type |
Brush DC Motor |
|
|

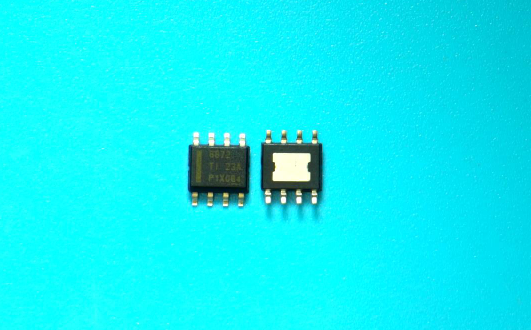

PACKAGE INFO
|
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
PdNiAg |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
75 |
| Packaging Document |
Link to Datasheet |
|
|

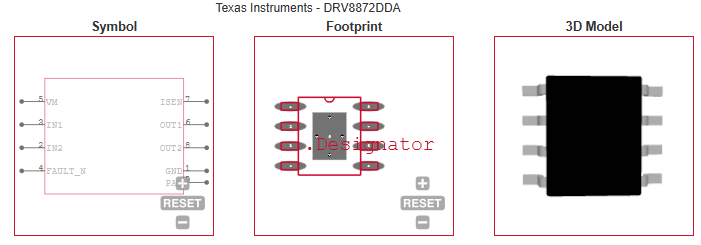

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Printers
|
| • Appliances |
| • Industrial Equipment |
| • Other Mechatronic Applications |
| |
