• AEC-Q100 qualified for automotive applications
|
• 4, 6, 8, 10 and 12 half-bridge outputs
|
• 4.5-V to 32-V operating voltage– 40-V absolute maximum voltage
|
• 1-A RMS current for each output– 6-A maximum current for paralleled outputs
|
• Low-power sleep mode (1.5-µA)
|
• Supports 3.3-V and 5-V logic inputs
|
• SPI for configuration and diagnostics– 5-MHz, 16-Bit SPI communication– Daisy chain functionality
|
• PWM generators programmable over SPI– Individual half-bridge PWM operation– Configurable for high-side, low-side, and Hbridge load driving– Supports 8-bit duty cycle resolution
|
|
| CATALOG |
DRV8908QPWPRQ1 COUNTRY OF ORIGIN
|
DRV8908QPWPRQ1 PARAMETRIC INFO
|
DRV8908QPWPRQ1 PACKAGE INFO
|
DRV8908QPWPRQ1 MANUFACTURING INFO
|
DRV8908QPWPRQ1 PACKAGING INFO
|

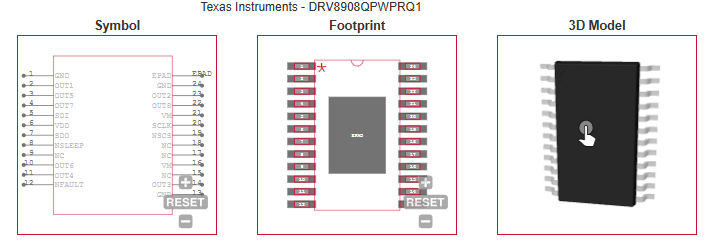

DRV8908QPWPRQ1 ECAD MODELS
|
DRV8908QPWPRQ1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
DC Motor Driver |
| Output Voltage (V) |
0 to 5.5 |
| Maximum Operating Current (mA) |
2.6(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Maximum On Resistance (Ohm) |
1.1 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Operating Supply Voltage (V) |
4.5 to 32 |
| Maximum Operating Supply Voltage (V) |
32 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Output Configuration |
H-Bridge |
| Control Interface |
SPI |
| Maximum Output Current (A) |
0.005 |
| Maximum Peak Output Current (A) |
3 |
| Motor Type |
Brushless DC Motor |
|
|
PACKAGE INFO
|
| Supplier Package |
HTSSOP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
Gull-wing |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
7.9(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
7.9(Max) |
| Package Overall Width (mm) |
6.6(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Heat Sinked Thin Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|

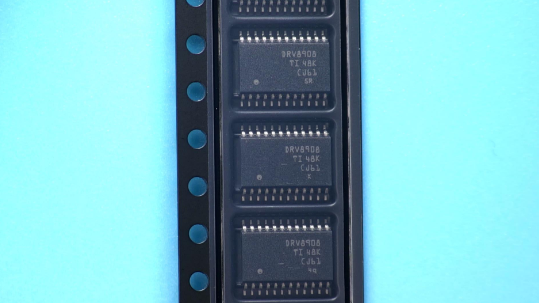

PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• HVAC flap DC motors
|
• Side mirror adjustment and mirror fold
|
• LED applications
|
• Multiple brushed DC motors and solenoids
|
|
