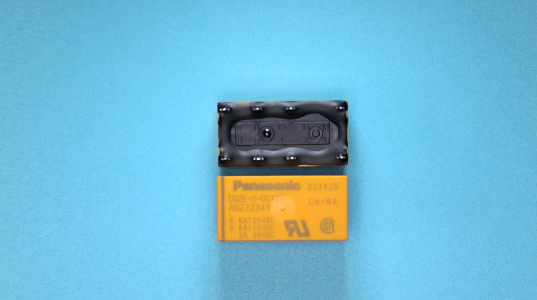

• 1 Form C / 2 Form C contact
|
• Available 2 coil latching type
|
• DIL terminal array enables use of IC sockets
|
|
| CATALOG |
| DS2E-S-DC12V COUNTRY OF ORIGIN |
DS2E-S-DC12V PARAMETRIC INFO
|
DS2E-S-DC12V PACKAGE INFO
|
DS2E-S-DC12V MANUFACTURING INFO
|
DS2E-S-DC12V PACKAGING INFO
|
DS2E-S-DC12V EACD MODELS
|
| DS2E-S-DC12V APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
12 |
| Coil Current (mA) |
16.7 |
| Contact Arrangement |
DPDT |
| Contact Form |
2 Form C |
| Contact Material |
Silver/Gold Clad |
| Maximum AC Switching Voltage (V) |
250 |
| Maximum DC Switching Voltage (V) |
220 |
| Maximum Switching Current (A) |
3 |
| Maximum Switching Power |
60W|125VA |
| Coil Resistance (Ohm) |
720 |
| Maximum Pick-Up Voltage |
8.4VDC |
| Minimum Dropout Voltage |
1.2VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
10 |
| Release Time (ms) |
5 |
| Seal |
Sealed |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Resistance (MOhm) |
100 |
| Electrical Life (Operations) |
500000 |
| Mechanical Life (Operations) |
100000000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
70 |
|
|
PACKAGE INFO
|
| Maximum Product Length (mm) |
N/A |
| Maximum Product Depth (mm) |
N/A |
| Maximum Product Height (mm) |
N/A |
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
8 |
| Package Type |
DIP |
| Product Length (mm) |
20 |
| Product Depth (mm) |
9.9 |
| Product Height (mm) |
9.9 |
| Product Weight (g) |
4 |
| Terminal Pitch (mm) |
5.08/7.62 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
6 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Carton |
| Quantity Of Packaging |
50 |
| Packaging Document |
Link to Datasheet |
|
|

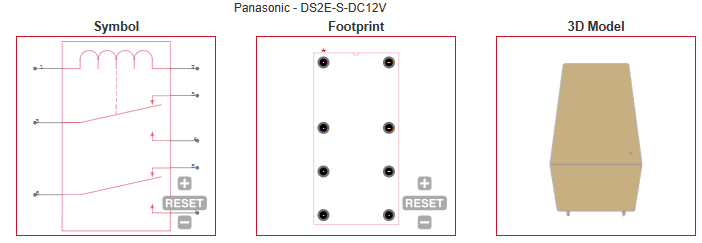

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Telecommunications and measuring devices |
| • Office equipment |
| • Computers and related equipment |
| • Industrial equipment |
| |
