• Planar passivated chips
|
• Very low leakage current
|
• Very short recovery time
|
| • Improved thermal behaviour
|
| • Very low Irm-values |
| • Very soft recovery behaviour |
| • Avalanche voltage rated for reliable operation
|
| • Soft reverse recovery for low EMI/RFI
|
| • Low Irm reduces:- Power dissipation within the diode- Turn-on loss in the commutating switch |
|
| CATALOG |
| DSEC30-06A COUNTRY OF ORIGIN |
DSEC30-06A PARAMETRIC INFO
|
DSEC30-06A PACKAGE INFO
|
DSEC30-06A MANUFACTURING INFO
|
DSEC30-06A PACKAGING INFO
|
| DSEC30-06A APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Germany |
|
PARAMETRIC INFO
|
| type |
Switching Diode |
| Configuration |
Dual Common Cathode |
| Peak Reverse Repetitive Voltage (V) |
600 |
| Maximum Continuous Forward Current (A) |
15 |
| Maximum Power Dissipation (mW) |
95000 |
| Speed |
Ultra Fast Recovery Rectifier |
| Peak Forward Voltage (V) |
2.24@30A |
| Peak Non-Repetitive Surge Current (A) |
110 |
| Peak Reverse Current (uA) |
100 |
| Peak Reverse Recovery Time (ns) |
35(Typ) |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
|
|
PACKAGE INFO
|
| Supplier packaging |

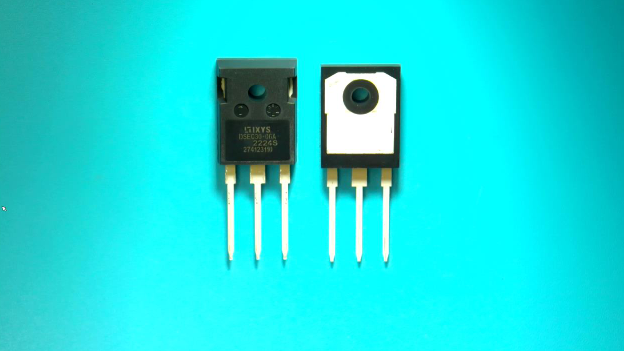

TO-247AD |
| Basic package type |
Through Hole |
| Number of pins |
3 |
| Pin shape |
Through Hole |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
5.5(Max) |
| Package length (mm) |
16.26(Max) |
| Package width (mm) |
5.3(Max) |
| Package height (mm) |
21.46(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
25.96(max) |
| Install |
Through Hole |
| Packaging materials |
Plastic |
| package instruction |
Transistor Outline Package |
| Package series name |
TO |
| JEDEC |
TO-247AD |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Maximum wave soldering temperature (°C) |
not applicable |
| Wave soldering time (seconds) |
not applicable |
| Lead Finish(Plating) |
Sn|SnAgCu |
| Plating materials |
not applicable |
| Terminal Base Material |
not applicable |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
30 |
|
|
APPLICATIONS
|
• Antiparallel diode for high frequency switching devices
|
• Antisaturation diode
|
| • Snubber diode |
• Free wheeling diode
|
| •Rectifiers in switch mode power supplies (SMPS) |
| • Uninterruptible power supplies (UPS) |
| |
| |
