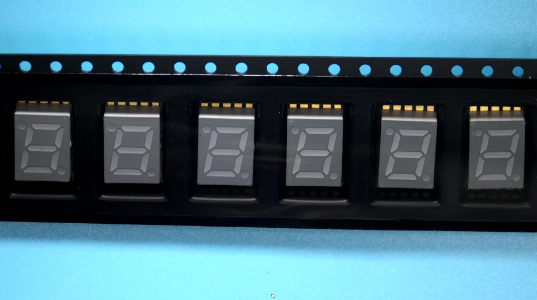

• 1-digit seven segment led numeric display
|
• Substrate: AlGaInP/GaAs
|
• Outer dimensions: 17.0 x 12.5 x 3.85mm
|
|
| CATALOG |
DSM7TA28106T COUNTRY OF ORIGIN
|
DSM7TA28106T PARAMETRIC INFO
|
DSM7TA28106T PACKAGE INFO
|
DSM7TA28106T MANUFACTURING INFO
|
DSM7TA28106T PACKAGING INFO
|
DSM7TA28106T ECAD MODELS
|
DSM7TA28106T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Module |
| Color |
Blue |
| Number of Digits |
1 |
| Configuration |
Common Anode |
| Digit Size (in) |
0.56 |
| Peak Wavelength (nm) |
625 |
| Intensity (ucd) |
90000 |
| Maximum Forward Voltage (V) |
2.4 |
| Maximum Forward Current (mA) |
20 |
| Maximum Reverse Voltage (V) |
5 |
| Character Displayed |
Numeric |
| Maximum Reverse Current (uA) |
50 |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Forward Voltage (V) |
2.6 |
| Typical Forward Voltage (V) |
3 |
| Viewing Area Length (mm) |
8.05 |
| Viewing Area Height (mm) |
14.2 |
| Total Thickness (mm) |
3.85 |
| Maximum Storage Temperature (°C) |
100 |
| Minimum Storage Temperature (°C) |
-40 |
| Test Current (mA) |
20 |
|
|
PACKAGE INFO
|
| Supplier Package |
SMD Module |
| Pin Count |
10 |
| PCB |
10 |
| Tab |
N/R |
| Package Length (mm) |
12.5 |
| Package Width (mm) |
19 |
| Package Height (mm) |
3.85 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1300 |
|
| |

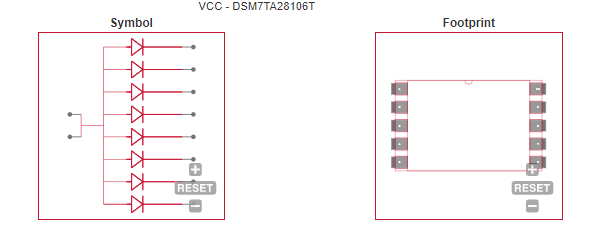

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • People Movers |
| • Home Appliances |
| • Medical Devices |
| • Industrial Devices |
| • Automation and Controls |
| • Light Control |
| • IoT |
| • Transportation |
| • Food Service Appliances |
| |
