• Enhanced Flash Program Memory:
- 10,000 erase/write cycle (min.) for
industrial temperature range, 100K (typical) |
• Data EEPROM Memory:
- 100,000 erase/write cycle (min.) for
industrial temperature range, 1M (typical) |
| • Self-Reprogrammable under Software Control |
| • Power-on Reset (POR), Power-up Timer (PWRT)
and Oscillator Start-up Timer (OST) |
| • Flexible Watchdog Timer (WDT) with On-Chip
Low-Power RC Oscillator for Reliable Operation |
• Fail-Safe Clock Monitor Operation:
- Detects clock failure and switches to on-chip
low-power RC oscillator |
| • Programmable Code Protection |
| • In-Circuit Serial Programming™ (ICSP™) |
• Selectable Power Management modes:
- Sleep, Idle and Alternate Clock modes |
|
| CATALOG |
| DSPIC30F4013-30I/P COUNTRY OF ORIGIN |
| DSPIC30F4013-30I/P PARAMETRIC INFO |
| DSPIC30F4013-30I/P PACKAGE INFO |
| DSPIC30F4013-30I/P MANUFACTURING INFO |
| DSPIC30F4013-30I/P PACKAGING INFO |
| DSPIC30F4013-30I/P ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Data Bus Width (bit) |
16 |
| Family Name |
dsPIC30F |
| Device Core |
dsPIC |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
30 |
| Program Memory Type |
Flash |
| Program Memory Size |
48KB |
| RAM Size |
2KB |
| Maximum Expanded Memory Size |
64KB |
| Maximum CPU Frequency (MHz) |
30 |
| Number of Programmable I/Os |
30 |
| Number of Timers |
5 |
| ADC Channels |
13 |
| ADC Resolution (bit) |
12 |
| Number of ADCs |
Single |
| Core Architecture |
dsPIC |
| PWM |
4 |
| Watchdog |
1 |
| Special Features |
CAN Controller |
| Interface Type |
CAN/I2C/SPI/UART |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
1 |
| I2S |
0 |
| UART |
2 |
| USART |
0 |
| CAN |
1 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
3.3|5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|

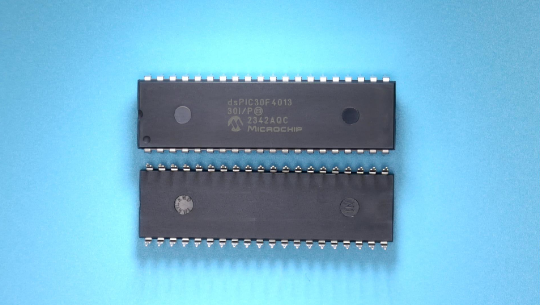

| PACKAGE INFO |
| Supplier Package |
PDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
40 |
| Lead Shape |
Through Hole |
| PCB |
40 |
| Tab |
N/R |
| Package Length (mm) |
53.21(Max) |
| Package Width (mm) |
14.73(Max) |
| Package Height (mm) |
4.95(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
10 |
|
|

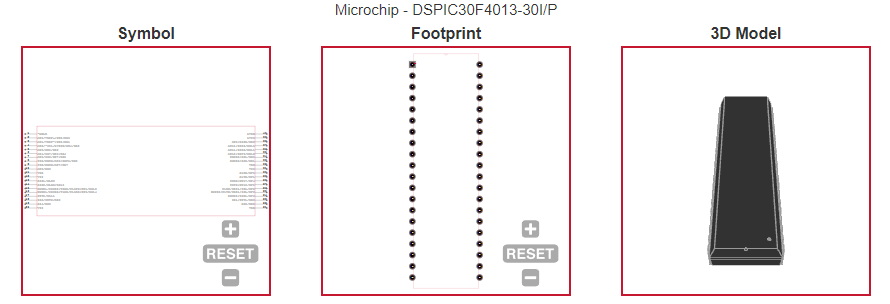

| ECAD MODELS |
 |
| |
|
