DSPIC33EP64MC502-I/MM COUNTRY OF ORIGIN
|
DSPIC33EP64MC502-I/MM PARAMETRIC INFO
|
DSPIC33EP64MC502-I/MM PACKAGE INFO
|
DSPIC33EP64MC502-I/MM MANUFACTURING INFO
|
DSPIC33EP64MC502-I/MM PACKAGING INFO
|

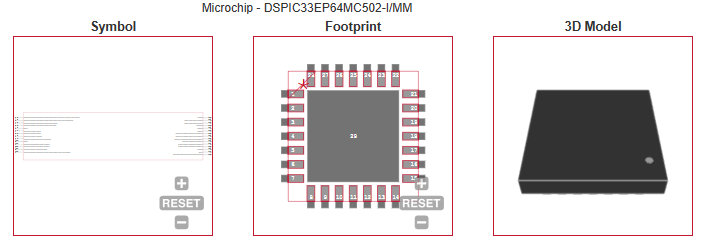

DSPIC33EP64MC502-I/MM ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Thailand |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
16 |
| Family Name |
dsPIC33E |
| Device Core |
dsPIC |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
70 |
| Program Memory Type |
Flash |
| Program Memory Size |
64KB |
| RAM Size |
8KB |
| Maximum CPU Frequency (MHz) |
70 |
| DMA Channels |
4 |
| Number of Programmable I/Os |
21 |
| Number of Timers |
5 |
| ADC Channels |
6 |
| ADC Resolution (bit) |
12 |
| Number of ADCs |
Single |
| Core Architecture |
dsPIC |
| PWM |
6 |
| Watchdog |
1 |
| Analog Comparators |
1 |
| Parallel Master Port |
No |
| Real Time Clock |
No |
| Special Features |
CAN Controller |
| Interface Type |
CAN/I2C/SPI/UART |
| Programmability |
Yes |
| SPI |
2 |
| I2C |
2 |
| I2S |
0 |
| UART |
2 |
| USART |
0 |
| CAN |
1 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|

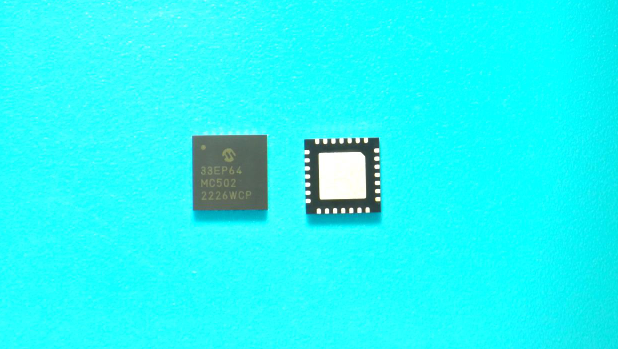

PACKAGE INFO
|
| Supplier Package |
QFN-S EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
No Lead |
| PCB |
28 |
| Tab |
N/R |
| Package Length (mm) |
6 |
| Package Width (mm) |
6 |
| Package Height (mm) |
0.88 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
61 |
|
|
ECAD MODELS
|
|
|
| |
| |
