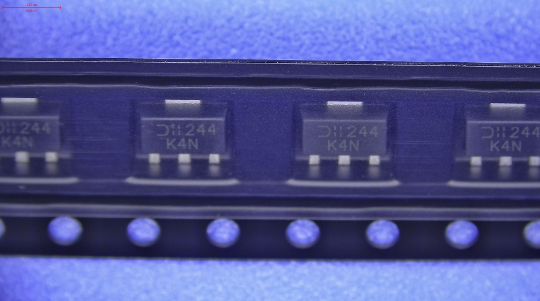

DXT5551-13 Diodes Incorporated TRANS NPN 160V 0.6A SOT89-3

label:

2023/12/22 274

CATALOG

DXT5551-13 COUNTRY OF ORIGIN

DXT5551-13 PARAMETRIC INFO

DXT5551-13 PACKAGE INFO

DXT5551-13 MANUFACTURING INFO

DXT5551-13 PACKAGING INFO

COUNTRY OF ORIGIN

China

PARAMETRIC INFO

Type	NPN
Configuration	Single Dual Collector
Maximum Collector-Emitter Voltage (V)	160
Maximum Collector Base Voltage (V)	180
Maximum Emitter Base Voltage (V)	6
Maximum DC Collector Current (A)	0.6
Maximum Power Dissipation (mW)	1200
Maximum Collector-Emitter Saturation Voltage (V)	0.15@1mA@10mA\|0.2@5mA@50mA
Maximum Base Emitter Saturation Voltage (V)	1@1mA@10mA\|1@5mA@50mA
Category	Bipolar Power
Minimum DC Current Gain	80@1mA@5V\|80@10mA@5V\|30@50mA@5V
Number of Elements per Chip	1
Maximum Transition Frequency (MHz)	300
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

Supplier Package	SOT-89
Basic Package Type	Lead-Frame SMT
Pin Count	4
Lead Shape	Flat
PCB	3
Tab	Tab
Pin Pitch (mm)	1.5
Package Length (mm)	4.6(Max)
Package Width (mm)	2.6(Max)
Package Height (mm)	1.6(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	4.6(Max)
Package Overall Width (mm)	4.25(Max)
Package Overall Height (mm)	1.6(Max)
Seated Plane Height (mm)	1.6(Max)
Mounting	Surface Mount
Package Material	Plastic
Package Description	Small Outline Transistor
Package Family Name	SOT
Jedec	TO-243AA
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu

Packaging Suffix	13
Packaging	Tape and Reel
Quantity Of Packaging	2500
Reel Diameter (in)	13
Reel Width (mm)	12.4
Tape Pitch (mm)	8
Tape Width (mm)	12
Feed Hole Pitch (mm)	4
Hole Center to Component Center (mm)	2
Component Orientation	Tab Opposing Sprocket Hole
Packaging Document	Link to Datasheet
Tape Type	Embossed
