| ■ Operating power supply voltage range
4.5 V VS 36 V (40 V for transients) |
| ■ Reverse supply (battery) protected down to
VS -24 V |
| ■ Standby mode with very low current
consumption ISSB 1 mA @ VCC 0.5 V |
| ■ Low quiescent current in off condition
ISOFF = 120 µA |
| ■ TTL compatible TX input |
| ■ Bidirectional K-I/O pin with supply voltage
dependent input threshold |
| ■ Overtemperature shut down function Selective
to K-I/O pin |
| ■ Wide input and output voltage range
-24 V VK VS |
| ■ K output current limitation, typ. IK = 60 mA |
| ■ Defined OFF output status in undervoltage
condition and VS or GND interruption |
| ■ Controlled output slope for low EMI |
| ■ High input impedance for open VS or GND
connection |
| ■ Defined output ON status of LO or RX for open
LI or K inputs |
| ■ Defined K output OFF for TX input open |
| ■ Integrated pull up resistors for TX, RX and LO |
| ■ EMI robustness optimized |
|
| CATALOG |
| E-L9637D013TR COUNTRY OF ORIGIN |
| E-L9637D013TR PARAMETRIC INFO |
| E-L9637D013TR PACKAGE INFO |
| E-L9637D013TR MANUFACTURING INFO |
| E-L9637D013TR PACKAGING INFO |
| E-L9637D013TR ECAD MODELS |
| E-L9637D013TR FUNCTIONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Malaysia |
| China |
| Morocco |
|
| PARAMETRIC INFO |
| Type |
Transceiver |
| Protocols Supported |
ISO 9141 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
4.5 |
| Maximum Single Supply Voltage (V) |
36 |
| Maximum Supply Current (mA) |
2.3 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SO N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.65(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|

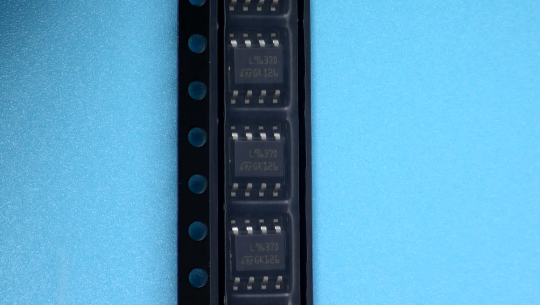

| |
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
 |
|

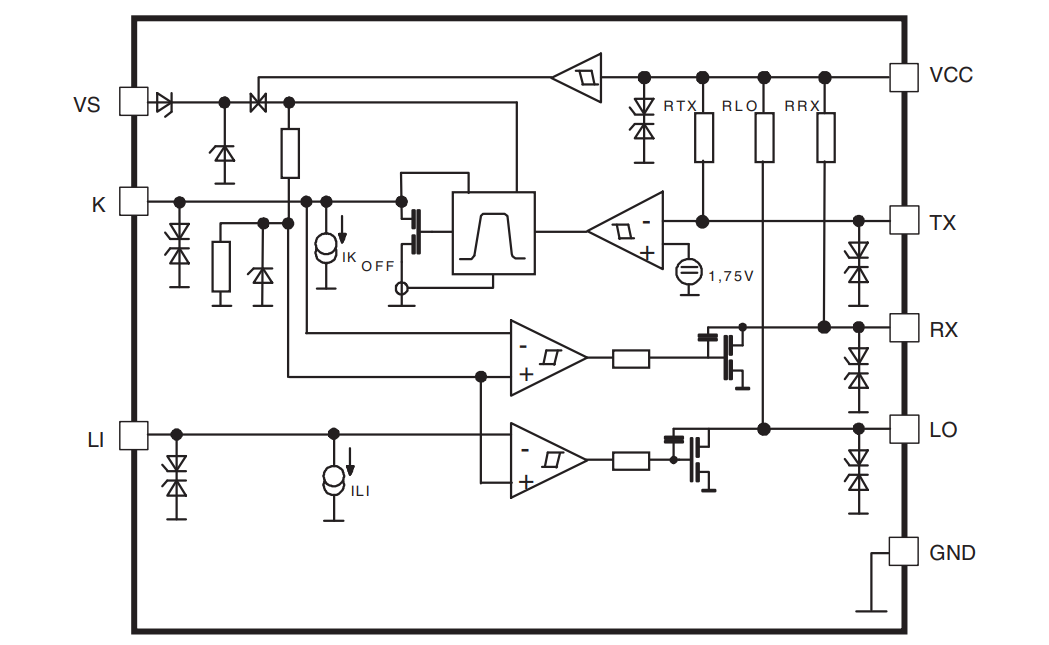

| FUNCTIONAL BLOCK DIAGRAM |
 |
| |
|
