• 8 channels low side driver with 450 mA output current capability
|
• Typical RDSON 1.5 at TJ = 25 °C
|
• Parallel control for output 1 and 2
|
| • SPI control on all outputs |
| • Reset function |
| • Diagnostic through 8 bit SPI |
| • Intrinsic output voltage clamping 50 V (Typ) protection for inductive load drive |
| • Short circuit current limitation and thermal shutdown for outputs 1 and 2 |
| • Overcurrent and short circuit shutdown for outputs 3 to 8 |
|
| CATALOG |
| E-L9826TR COUNTRY OF ORIGIN |
E-L9826TR PARAMETRIC INFO
|
E-L9826TR PACKAGE INFO
|
E-L9826TR MANUFACTURING INFO
|
E-L9826TR PACKAGING INFO
|
E-L9826TR EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Number of Outputs |
8 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
-0.3 |
| Maximum Input Voltage (V) |
7 |
| Maximum Output Current (A) |
0.45 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
1500 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
SO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
Gull-wing |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
13(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
13(Max) |
| Package Overall Width (mm) |
10.65(Max) |
| Package Overall Height (mm) |
2.65(Max) |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-013AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|

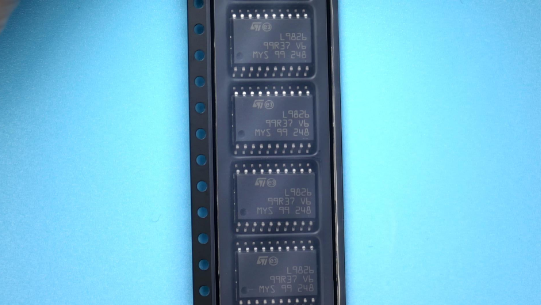

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
