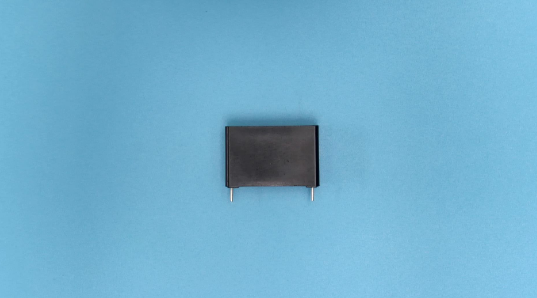

ECW-FE2J105JA COUNTRY OF ORIGIN
|
ECW-FE2J105JA PARAMETRIC INFO
|
ECW-FE2J105JA PACKAGE INFO
|
ECW-FE2J105JA MANUFACTURING INFO
|
ECW-FE2J105JA PACKAGING INFO
|
ECW-FE2J105JA ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
Capacitance Value |
1uF |
Voltage |
630VDC |
Tolerance |
5% |
Dielectric |
PP |
Construction |
Plastic Rectangular Can |
Maximum Operating Temperature (°C) |
105 |
Minimum Operating Temperature (°C) |
-40 |
Lead Diameter (mm) |
0.8 |
Operating Temperature (°C) |
-40 to 105 |
DC Rated Voltage (VDC) |
630 |
Negative Capacitance Tolerance (%) |
-5 |
Positive Capacitance Tolerance (%) |
5 |
Maximum Pulse Rise Time (V/us) |
65 |
Maximum Storage Temperature (°C) |
35 |
Lead Length (mm) |
4 |
Wire Form |
Straight |
Polarity |
Non Polar |
Special Features |
Excellent Frequency Characteristics|Low Loss|Small Size |
Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
Mounting |
Through Hole |
Termination Style |
Radial |
Package/Case |
N/R |
Terminal Pitch (mm) |
22.5 |
Product Length (mm) |
26 |
Product Depth (mm) |
10 |
Product Height (mm) |
17 |
Product Diameter (mm) |
N/R |
Seated Plane Height (mm) |
17 |
Product Weight (g) |
6 |
Length Tolerance (mm) |
±0.5 |
Depth Tolerance (mm) |
±0.5 |
Height Tolerance (mm) |
±0.5 |
Diameter Tolerance (mm) |
N/R |
Number of Terminals |
2 |
Size (mm) |
26 X 10 X 17 |
Maximum Product Length (mm) |
26.5 |
Maximum Product Depth (mm) |
10.5 |
Maximum Product Height (mm) |
17.5 |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|
Packaging |
Ammo |
Packaging Document |
Link to Datasheet |
|
|

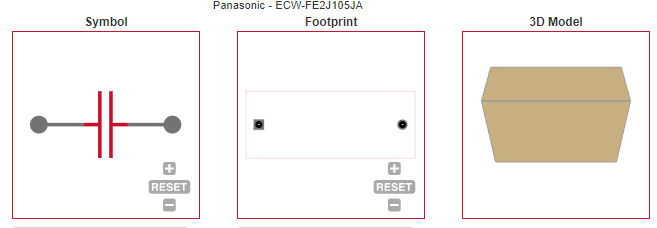

ECAD MODELS
|

|
|
