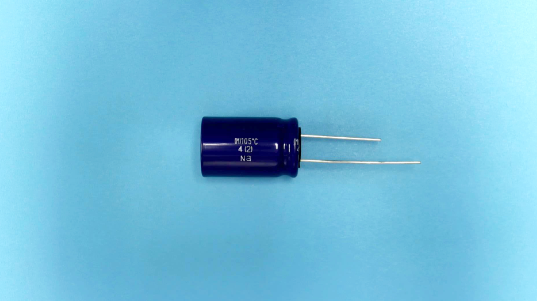

ELXZ500ELL102ML25S COUNTRY OF ORIGIN
|
ELXZ500ELL102ML25S PARAMETRIC INFO
|
ELXZ500ELL102ML25S PACKAGE INFO
|
ELXZ500ELL102ML25S MANUFACTURING INFO
|
ELXZ500ELL102ML25S PACKAGING INFO
|
ELXZ500ELL102ML25S ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Indonesia
|
Japan
|
|
PARAMETRIC INFO
|
| Capacitance Value |
1000uF |
| Voltage |
50VDC |
| Tolerance |
20% |
| Ripple Current (A) |
2.24 |
| Leakage Current (uA) |
500@2Min |
| Lifetime (h) |
8000 |
| Polarity |
Polar |
| Maximum Impedance (Ohm) |
0.034@20°C@100kHz|0.068@-10°C@100kHz |
| Construction |
Aluminum Cylindrical Can |
| Maximum Operating Temperature (°C) |
105 |
| Type |
Electrolytic |
| Wire Form |
Long Lead |
| Operating Temperature (°C) |
-55 to 105 |
| Minimum Operating Temperature (°C) |
-55 |
| Lead Diameter (mm) |
0.8 |
| Equivalent Series Resistance Type |
Very Low |
| DC Rated Voltage (VDC) |
50 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Storage Temperature (°C) |
35 |
| Maximum Dissipation Factor (%) |
0.1 |
| Package Region |
World Wide |
| Special Features |
Solvent Resistant|Very Low Impedance |
| Test Frequency (Hz) |
120 |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
Radial |
| Terminal Pitch (mm) |
7.5 |
| Product Length (mm) |
N/R |
| Product Depth (mm) |
N/R |
| Product Height (mm) |
25 |
| Product Diameter (mm) |
16 |
| Seated Plane Height (mm) |
N/A |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
N/R |
| Depth Tolerance (mm) |
N/R |
| Height Tolerance (mm) |
1.5 |
| Diameter Tolerance (mm) |
0.5 |
| Number of Terminals |
2 |
| Size (mm) |
16 X 25 |
| Maximum Product Length (mm) |
N/R |
| Maximum Product Depth (mm) |
N/R |
| Maximum Product Height (mm) |
26.5 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Cu |
| Terminal Base Material |
Fe |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
LL |
| Packaging |
Bulk |
| Packaging Document |
Link to Datasheet |
|
|

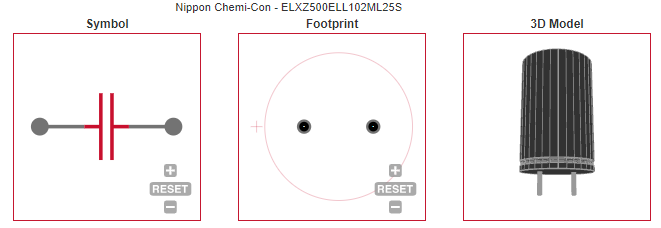

ECAD MODELS
|
|
|
