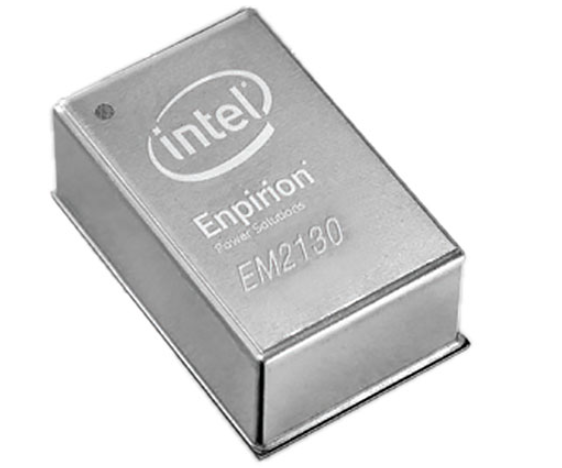

• Integrated inductor, FETs, and digital controller
|
• Wide 4.5V to 16V VIN range
|
• 0.7V to 3.6V VOUT range
|
• 30A continuous current with no thermal deratin
|
• Optimized total solution size of only 365 mm2
|
|
| CATALOG |
EM2130L02QI LIFECYCLE
|
EM2130L02QI PARAMETRIC INFO
|
EM2130L02QI PACKAGE INFO
|
EM2130L02QI PACKAGING INFO
|
EM2130L02QI APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
Mar 18,2022
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
16 |
| Output Voltage (V) |
0.7 to 1.325 |
| Maximum Output Current (A) |
30 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Switching Frequency (kHz) |
800(Typ) |
| Efficiency (%) |
95 |
| Switching Regulator |
Yes |
| Operating Supply Voltage Range (V) |
4.5 to 16 |
| Output Type |
Adjustable |
| Load Regulation |
0.07mV/A(Typ) |
| Line Regulation |
0.007mV/V(Typ) |
| Typical Quiescent Current (uA) |
40000 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
104 |
| Lead Shape |
No Lead |
| PCB |
104 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
17 |
| Package Width (mm) |
11 |
| Package Height (mm) |
6.76 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
6.76 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package |
| Package Family Name |
QFN |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
112 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• High performance FPGA supply rails
|
• ASIC and processor supply rails
|
• High density double data rate (DDR) memory VDDQ rails
|
|
