• Item Summary 100uF±20%, 16V, X5R, 1210/3225 (EIA/JIS)
|
• Lifecycle Stage Mass Production (Preferred)
|
• Standard packaging quantity (minimum)Taping Embossed 1000pcs
|
|
| CATALOG |
EMK325ABJ107MM-P COUNTRY OF ORIGIN
|
EMK325ABJ107MM-P PARAMETRIC INFO
|
EMK325ABJ107MM-P PACKAGE INFO
|
EMK325ABJ107MM-P MANUFACTURING INFO
|
EMK325ABJ107MM-P PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
China
|
Japan
|
|
PARAMETRIC INFO
|
| Capacitance Value |
100uF |
| Voltage |
16VDC |
| Tolerance |
20% |
| Dielectric |
X5R |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
85 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 85 |
| Minimum Operating Temperature (°C) |
-55 |
| DC Rated Voltage (VDC) |
16 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| Maximum Storage Temperature (°C) |
30 |
| Maximum Dissipation Factor (%) |
10 |
| Polarity |
Non Polar |
| Special Features |
High Dielectric |
| Test Frequency (Hz) |
120 |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
1210 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
3.2 |
| Product Depth (mm) |
2.5 |
| Product Height (mm) |
2.5 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Length Tolerance (mm) |
±0.3 |
| Depth Tolerance (mm) |
±0.3 |
| Height Tolerance (mm) |
±0.3 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
3.2 X 2.5 X 2.5 |
| Maximum Product Length (mm) |
3.5 |
| Maximum Product Depth (mm) |
2.8 |
| Maximum Product Height (mm) |
2.8 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

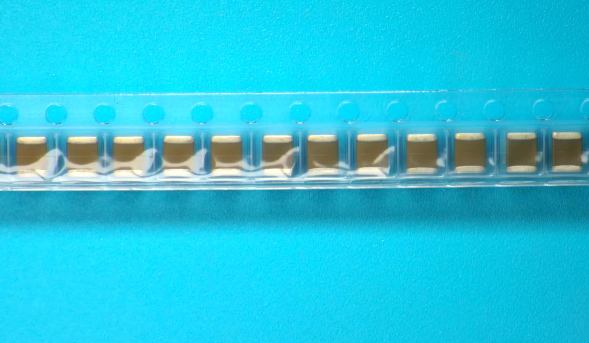

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
10 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
