EP2K1+ COUNTRY OF ORIGIN
|
EP2K1+ PARAMETRIC INFO
|
EP2K1+ PACKAGE INFO
|
EP2K1+ MANUFACTURING INFO
|
EP2K1+ PACKAGING INFO
|
EP2K1+ ECAD MODELS
|
EP2K1+ APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Module/IC Classification |
IC |
| Number of Inputs |
1 |
| Number of Outputs |
2 |
| Frequency Range (MHz) |
2000 to 26500 |
| Minimum Operating Temperature (°C) |
-40 |
| Number of Ports |
2 |
| Maximum Power Rating (W) |
2.5(Typ) |
| Minimum Isolation (dB) |
14 |
| Maximum Operating Temperature (°C) |
85 |
| Input Signal Type |
Single-Ended |
| Output Signal Type |
Single-Ended |
| Typical Input VSWR |
1.5 |
| Typical Output VSWR |
1.5 |
| Output Impedance (Ohm) |
50 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Category |
Passive |
| Type |
Combiner/Splitter |
|
|
PACKAGE INFO
|
| Supplier Package |
MCLP EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
No Lead |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.04 |
| Package Material |
Plastic |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

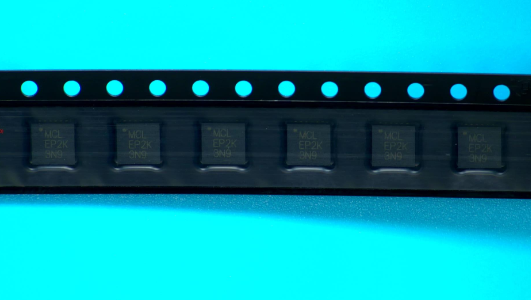

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000|2000|3000|4000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

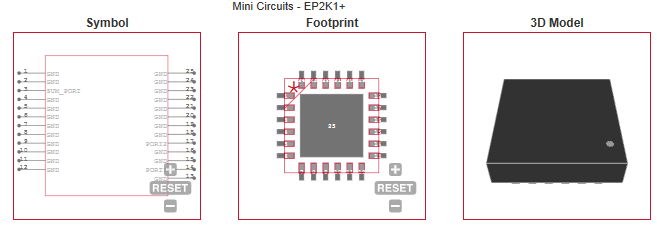

ECAD MODELS
|
|
|
APPLICATIONS
|
• WIMAX
|
• ISM
|
• Instrumentation
|
• Radar
|
| • WLAN |
• Satellite communications
|
| • LTE |
| |
