| EPM7032SLC44-10N COUNTRY OF ORIGIN |
EPM7032SLC44-10N LIFECYCLE
|
EPM7032SLC44-10N PARAMETRIC INFO
|
EPM7032SLC44-10N PACKAGE INFO
|
EPM7032SLC44-10N MANUFACTURING INFO
|
EPM7032SLC44-10N PACKAGING INFO
|

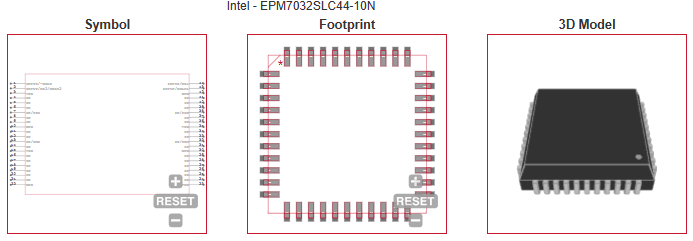

EPM7032SLC44-10N ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Indonesia |
Malaysia
|
Taiwan (Province of China)
|
Thailand
|
|
LIFECYCLE
|
Obsolete
Jul 29,2009
|
|
PARAMETRIC INFO
|
| Type |
Open Loop |
| Typical RMS Primary Current (A) |
±50 |
| Sensing Current Type |
AC|DC |
| Accuracy (%) |
±0.5 |
| Typical Response Time (us) |
4.6 |
| Sensitivity (mV/A) |
40 |
| Operating Frequency (kHz) |
120 |
| Maximum Output Voltage (V) |
25 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Module/IC Classification |
IC |
| Supplier Temperature Grade |
Automotive |
| Maximum Storage Temperature (°C) |
165 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
PLCC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
44 |
| Lead Shape |
J-Lead |
| PCB |
44 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
16.59 |
| Package Width (mm) |
16.59 |
| Package Height (mm) |
3.81 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
17.53 |
| Package Overall Width (mm) |
17.53 |
| Package Overall Height (mm) |
4.37 |
| Seated Plane Height (mm) |
4.37 |
| Mounting |
Surface Mount |
| Package Weight (g) |
2.6 |
| Package Material |
Plastic |
| Package Description |
Plastic Leaded Chip Carrier |
| Package Family Name |
LCC |
| Jedec |
MS-018AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
|
| |
