• Low profile package
|
• Ideal for automated placement
|
• Glass passivated chip junction
|
• High forward surge capability
|
• Super Fast reverse recovery time
|
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
|
• Part no. with suffix “Q” means AEC-Q101 qualified
|
|
| CATALOG |
ES2DAQ PARAMETRIC INFO
|
ES2DAQ PACKAGE INFO
|
ES2DAQ PACKAGING INFO
|
ES2DAQ APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Switching Diode |
| Configuration |
Single |
| Maximum DC Reverse Voltage (V) |
200 |
| Peak Reverse Repetitive Voltage (V) |
200 |
| Maximum Continuous Forward Current (A) |
2 |
| Average Rectified Forward Current (A) |
2 |
| Speed |
Ultra Fast Recovery Rectifier |
| Peak Forward Voltage (V) |
0.95 |
| Peak Non-Repetitive Surge Current (A) |
50 |
| Peak Reverse Current (uA) |
5 |
| Peak Reverse Recovery Time (ns) |
35 |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
SMA |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/R |
| Package Length (mm) |
4.75(Max) |
| Package Width (mm) |
2.83(Max) |
| Package Height (mm) |
2.1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.067 |
| Package Material |
Plastic |
| Package Description |
SMD Plastic Package |
| Package Family Name |
DO |
| Jedec |
DO-214AC |
| Package Outline |
Link to Datasheet |
|
|

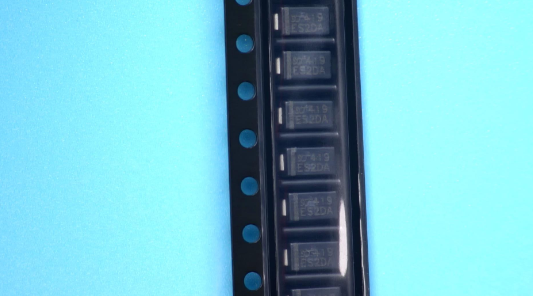

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
For use in high frequency rectification of power supplies,
inverters, converters, and freewheeling diodes for consumer,
automotive and telecommunication.
|
|
