• single line low capacitance Transil diode
|
• bidirectional ESD protection
|
• ESD protection > 30 kV (IEC 61000-4-2 contact
discharge)
|
• breakdown voltage VBR = 6.1 V min.
|
• low diode capacitance (22 pF typ. at 0 V)
|
| • low leakage current < 100 nA at 3 V
|
| • very small PCB area 0.6 mm2 |
| • lead-free package |
|
| CATALOG |
| ESDALC6V1-1BM2 LIFECYCLE |
ESDALC6V1-1BM2 PARAMETRIC INFO
|
ESDALC6V1-1BM2 PACKAGE INFO
|
ESDALC6V1-1BM2 MANUFACTURING INFO
|
ESDALC6V1-1BM2 PACKAGING INFO
|
ESDALC6V1-1BM2 APPLICATIONS
|
|
| LIFECYCLE |
Obsolete
Jun 29,2010
|
|
PARAMETRIC INFO
|
| Type |
TVS |
| Direction Type |
Bi-Directional |
| Maximum Working Voltage (V) |
3 |
| Configuration |
Single |
| Capacitance Value (pF) |
22(Typ) |
| Maximum Leakage Current (uA) |
0.1 |
| Number of Elements per Chip |
1 |
| Peak Pulse Power Dissipation (W) |
140 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOD-882 |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
2 |
| Lead Shape |
No Lead |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/R |
| Package Length (mm) |
1 |
| Package Width (mm) |
0.6 |
| Package Height (mm) |
0.5(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.5 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Diode Package |
| Package Family Name |
SOD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|

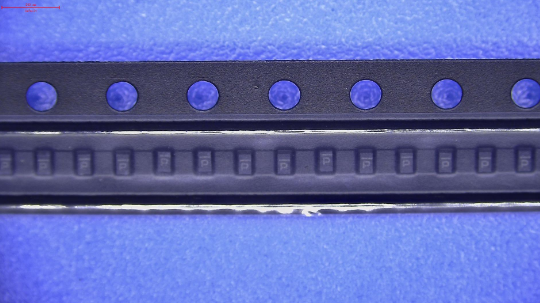

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• computers
|
| • printers
|
• communication systems
|
• cellular phone handsets and accessories
|
| • video equipment |
|
| |
| |
