• AEC-Q101 qualified
|
• Asymetrical bidirectional ESD protection
|
• Low leakage current (IR max. < 50 nA at VRM)
|
| • Stand-off voltage:– -15 V (to comply with reverse battery)– +24 V (to comply with jump start) |
| • High ESD protection level: up to 30 kV |
| • ECOPACK2 RoHS compliant component |
| |
| CATALOG |
| ESDLIN1524BJ COUNTRY OF ORIGIN |
ESDLIN1524BJ PARAMETRIC INFO
|
ESDLIN1524BJ PACKAGE INFO
|
ESDLIN1524BJ MANUFACTURING INFO
|
ESDLIN1524BJ PACKAGING INFO
|
ESDLIN1524BJ EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Type |
TVS |
| Direction Type |
Bi-Directional |
| Maximum Working Voltage (V) |
24 |
| Configuration |
Single |
| Capacitance Value (pF) |
20 |
| Maximum Clamping Voltage (V) |
50 |
| Maximum Leakage Current (uA) |
0.001 |
| Number of Elements per Chip |
1 |
| Peak Pulse Power Dissipation (W) |
160 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
175 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
SOD-323 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
2 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/R |
| Package Length (mm) |
1.8(Max) |
| Package Width (mm) |
1.45(Max) |
| Package Height (mm) |
1.07(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.17(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Diode Package |
| Package Family Name |
SOD |
| Jedec |
SOD-323 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Alloy 42 |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
100 |
| Packaging Document |
Link to Datasheet |
|
|

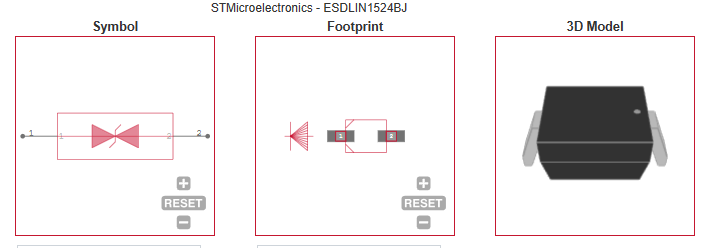

ECAD MODELS
|
|
|
