• Very low profile - typical height of 1.0 mm
|
• Ideal for automated placement
|
• Glass passivated pellet chip junction
|
| • Ultrafast recovery times for high frequency |
| • Low forward voltage drop, low power losses |
| • Low thermal resistance |
| • Meets MSL level 1 per J-STD-020, LF maximum peak of 260 °C |
|
| CATALOG |
| ESH2PD-M3/84A COUNTRY OF ORIGIN |
ESH2PD-M3/84A PARAMETRIC INFO
|
ESH2PD-M3/84A PACKAGE INFO
|
ESH2PD-M3/84A MANUFACTURING INFO
|
ESH2PD-M3/84A PACKAGING INFO
|
| ESH2PD-M3/84A APPLICATIONS |
| |
| COUNTRY OF ORIGIN |
| China |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
Switching Diode |
| Configuration |
Single |
| Peak Reverse Repetitive Voltage (V) |
200 |
| Maximum Continuous Forward Current (A) |
2 |
| Speed |
Ultra Fast Recovery Rectifier |
| Peak Forward Voltage (V) |
0.98 |
| Peak Non-Repetitive Surge Current (A) |
50 |
| Peak Reverse Current (uA) |
1 |
| Peak Reverse Recovery Time (ns) |
25 |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Commercial |
|
|
PACKAGE INFO
|
| Supplier Package |
SMP |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Package Length (mm) |
3.61(Max) |
| Package Width (mm) |
2.18(Max) |
| Package Height (mm) |
1.15(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.15(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
/84A |
| Packaging |

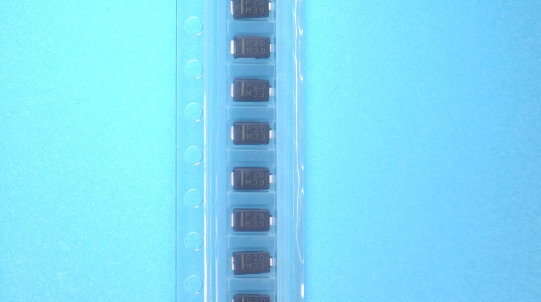

Tape and Reel |
|
|
| APPLICATIONS |
• For use in secondary rectification and freewheeling for
ultrafast switching speeds of AC/DC and DC/DC converters
in high temperature for both consumer and automotive
applications. |
| |
