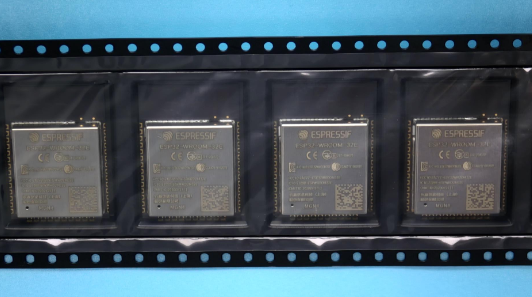

ESP32-WROOM-32E-N4 Espressif Systems RF TXRX MOD WIFI TRACE ANT SMD

2024/07/29 447

CATALOG

Viet Nam

Construction	WLAN+BT
Style	Module
WLAN Frequency Range (MHz)	2412 to 2484
WLAN Maximum Data Rate (Mbps)	150
WLAN Technology	IEEE 802.11b/g/n
WLAN Maximum Output Power	19.5dBm(Typ)
BT Maximum Output Power	0dBm(Typ)
WLAN Typical Sensitivity	-97dBm
BT Typical Sensitivity	-88dBm
WLAN Interface	ADC/DAC/GPIO/I2C/I2S/PWM/SDIO/SPI/UART
BT Protocol Supported	Bluetooth v4.2(BLE) + EDR
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
BT Power Class	Class I\|Class II\|Class III

Packaging Document

Link to Datasheet
