●External dimensions : 3.5 mm × 2.9 mm,Height 1.7 mm
|
●High operating force available ( Operating force : Max. 7.0 N )
|
●Optional ground terminal
|
|
| CATALOG |
|
| EVP-AA402W COUNTRY OF ORIGIN |
EVP-AA402W PARAMETRIC INFO
|
EVP-AA402W PACKAGE INFO
|
EVP-AA402W MANUFACTURING INFO
|
EVP-AA402W PACKAGING INFO
|

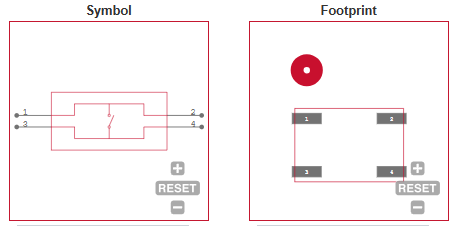

EVP-AA402W ECAD MODELS
|
EVP-AA402W APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| China |
|
PARAMETRIC INFO
|
| Type |
Light Touch |
| Pole Throw Configuration |
SPST |
| Switch Configuration |
N.O. |
| Maximum Current Rating (A) |
0.02@15VDC |
| Maximum DC Voltage Rating (V) |
15 |
| Mechanical Life (Cycles) |
200000 |
| Actuator Style |
Rectangular Button |
| Operating Force (N) |
2.4 |
| Ground Terminal |
No |
| Dielectric Strength |
250VAC |
| Maximum Contact Resistance (mOhm) |
100 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Actuator Color |
White |
| Actuator Length (mm) |
0.3 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Body Length (mm) |
3.5 |
| Body Depth (mm) |
2.9 |
| Body Height (mm) |
1.4 |
| Terminal Length (mm) |
0.4 |
| Number of Rows |
2 |
| Row Spacing (mm) |
3.35 |
| Operating Temperature (°C) |
-40 to 85 |
| Minimum Storage Temperature (°C) |
-20 |
| Maximum Storage Temperature (°C) |
60 |
|
|
PACKAGE INFO
|
| Termination Style |
J-Bend |
| Mounting |
Surface Mount |
| Body Orientation |
Straight |
| Product Length (mm) |
4.3 |
| Product Depth (mm) |
2.9 |
| Product Height (mm) |
1.7 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
1.45 |
| Number of Terminals |
4 |
|
|
Manufacturing Info
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au|Ag |
| Under Plating Material |
N/A |
| Terminal Base Material |
SnZnNi |
|
|

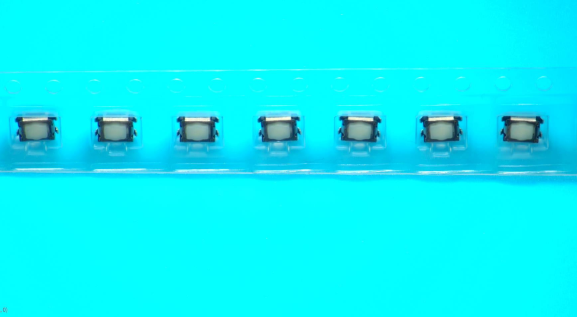

Packaging Info
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
●Operation switches for portable electronic equipments ( Mobile phones, Digital still cameras, etc. )
|
●Operating switches for keyless entry systems
|
|
