• The open center space allows for fl exibility in choosing a LED Up to a 4.2-mm diameter chip LED can be mounted.
|
• Provides an excellent operational feel.• Crisp tactile feedback• Long stroke (1 mm)
|
• Supports auto refl ow soldering.
|
|
| CATALOG |
EVP-ADK04K COUNTRY OF ORIGIN
|
EVP-ADK04K PARAMETRIC INFO
|
EVP-ADK04K PACKAGE INFO
|
EVP-ADK04K MANUFACTURING INFO
|
EVP-ADK04K PACKAGING INFO
|
EVP-ADK04K ECAD MODELS
|
EVP-ADK04K APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Light Touch |
| Pole Throw Configuration |
SPST |
| Switch Configuration |
N.O. |
| Maximum Current Rating (A) |
0.05@12VDC |
| Maximum DC Voltage Rating (V) |
12 |
| Electrical Life (Cycles) |
100000 |
| Actuator Style |
Round Button |
| Operating Force (N) |
4 |
| Ground Terminal |
No |
| Dielectric Strength |
250VAC |
| Maximum Contact Resistance (mOhm) |
100 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Actuator Length (mm) |
1.5 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Body Length (mm) |
10.15 |
| Body Depth (mm) |
9.8 |
| Body Height (mm) |
3.2 |
| Terminal Length (mm) |
0.28 |
| Number of Rows |
2 |
| Row Spacing (mm) |
9.85 |
| Operating Temperature (°C) |
-40 to 85 |
| Maximum Storage Temperature (°C) |
60 |
| Minimum Storage Temperature (°C) |
-20 |
|
|
PACKAGE INFO
|
| Termination Style |
J-Bend |
| Mounting |
Surface Mount |
| Body Orientation |
Straight |
| Product Length (mm) |
10.15 |
| Product Depth (mm) |
10.35 |
| Product Height (mm) |
4.7 |
| Product Weight (g) |
N/A |
| Terminal Pitch (mm) |
1.6 |
| Number of Terminals |
6 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Ag |
| Under Plating Material |
N/A |
| Terminal Base Material |
SnZnNi |
|
|
PACKAGING INFO
|
| Packaging |

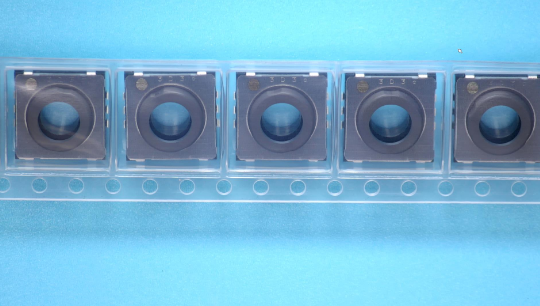

Tape and Reel |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

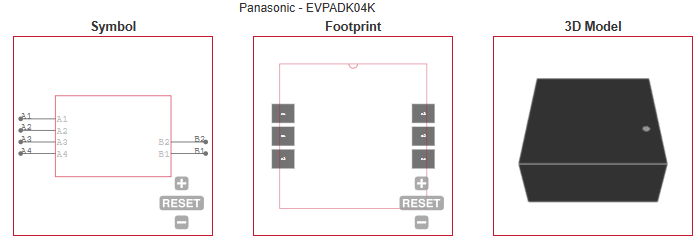

| ECAD MODELS |
|
|
| APPLICATIONS |
• Control switches for automotive electronic equipment,such as car audio systems and heater control panels
|
|
