FDC5614P onsemi / Fairchild MOSFET P-CH 60V 3A SSOT-6

label:
2025/07/9 4
FDC5614P onsemi / Fairchild  MOSFET P-CH 60V 3A SSOT-6


• Fast Switching Speed
• High Performance Trench Technology for Extremely Low RDS(on)
• This is a Pb−Free and Halide Free Device


CATALOG
FDC5614P COUNTRY OF ORIGIN
FDC5614P PARAMETRIC INFO
FDC5614P PACKAGE INFO
FDC5614P MANUFACTURING INFO
FDC5614P PACKAGING INFO
FDC5614P ECAD MODELS
FDC5614P APPLICATIONS


COUNTRY OF ORIGIN
Israel
Korea (Republic of)
Philippines


PARAMETRIC INFO
Channel Type P
Channel Mode Enhancement
Configuration Single Quad Drain
Maximum Drain-Source Voltage (V) 60
Maximum Absolute Continuous Drain Current (A) 3
Maximum Continuous Drain Current (A) 3
Maximum Gate-Source Voltage (V) ±20
Maximum Drain-Source Resistance (mOhm) 105@10V
ID For GFS (A) 3
VDS For GFS (V) 5
Breakdown Voltage Type DSS
Typical Gate Charge @ Vgs (nC) 15@10V
Operating Junction Temperature (°C) -55 to 150
Typical Gate Charge @ 10V (nC) 15
Maximum Power Dissipation (mW) 1600
Process Technology PowerTrench
Minimum Gate Threshold Voltage (V) 1
Category Power MOSFET
Typical Output Capacitance (pF) 90
Typical Gate to Drain Charge (nC) 3
Typical Gate to Source Charge (nC) 2.5
Maximum Junction Ambient Thermal Resistance (°C/W) 78
Maximum Junction Case Thermal Resistance (°C/W) 30
Maximum Positive Gate-Source Voltage (V) 20
Typical Gate Threshold Voltage (V) 1.6
Typical Input Capacitance @ Vds (pF) 759@30V
Typical Reverse Transfer Capacitance @ Vds (pF) 39@30V
Typical Diode Forward Voltage (V) 0.8
Maximum Diode Forward Voltage (V) 1.2
Maximum Pulsed Drain Current @ TC=25°C (A) 20
Typical Forward Transconductance (S) 8
Typical Turn-On Delay Time (ns) 7
Typical Turn-Off Delay Time (ns) 19
Typical Fall Time (ns) 12
Typical Rise Time (ns) 10
Maximum Gate-Source Leakage Current (nA) 100
Maximum Gate Threshold Voltage (V) 3
Maximum IDSS (uA) 1
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Tradename PowerTrench™


PACKAGE INFO
Supplier Package TSOT-23
Basic Package Type Lead-Frame SMT
Pin Count 6
Lead Shape Gull-wing
PCB 6
Tab N/R
Pin Pitch (mm) 0.95
Package Length (mm) 2.95
Package Width (mm) 1.5
Package Height (mm) 0.85
Package Diameter (mm) N/R
Package Overall Length (mm) 2.95
Package Overall Width (mm) 2.75
Package Overall Height (mm) 1
Seated Plane Height (mm) 1
Mounting Surface Mount
Terminal Width (mm) 0.38
Package Weight (g) N/A
Package Material Plastic
Package Description Thin Small Outline Transistor
Package Family Name SOT
Jedec N/A
Package Outline Link to Datasheet
Maximum PACKAGE_DIMENSION_H 1
Minimum PACKAGE_DIMENSION_H 0.7
Maximum PACKAGE_DIMENSION_L 3.1
Minimum PACKAGE_DIMENSION_L 2.8
Maximum PACKAGE_DIMENSION_W 1.7
Minimum PACKAGE_DIMENSION_W 1.3
Maximum Diameter N/R
Minimum Diameter N/R
Maximum Seated_Plane_Height 1.1
Minimum Seated_Plane_Height 0.9


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard N/A
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Cu Alloy
Shelf Life Period 24 Month
Shelf Life Condition 8°C to 30°C+30 % to 70 % RH
Number of Wave Cycles N/R


PACKAGING INFO
Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 7
Reel Width (mm) 8.4(Min)
Tape Pitch (mm) 4
Tape Width (mm) 8
Feed Hole Pitch (mm) 4
Hole Center to Component Center (mm) 2
Component Orientation Q3
Packaging Document Link to Datasheet
Tape Type Embossed

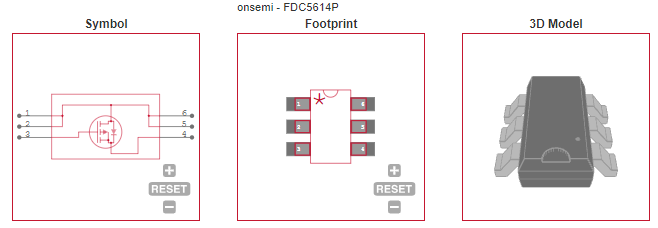

ECAD MODELS



APPLICATIONS
• DC−DC Converters
• Load Switch
• Power Management
