| FFA60UP30DNTU COUNTRY OF ORIGIN |
FFA60UP30DNTU PARAMETRIC INFO
|
FFA60UP30DNTU PACKAGE INFO
|
FFA60UP30DNTU MANUFACTURING INFO
|
FFA60UP30DNTU PACKAGING INFO
|
FFA60UP30DNTU ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Supplier packaging |
TO-3P |
| Basic package type |
Through Hole |
| Number of pins |
3 |
| Pin shape |
Through Hole |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
5.45 |
| Package length (mm) |
16.2(Max) |
| Package width (mm) |
5(Max) |
| Package height (mm) |
18.9(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
16.2(Max) |
| Package Overall Width (mm) |
5(Max) |
| Package Overall Height (mm) |
23.8(Max) |
| Mounting surface height (mm) |
23.8(Max) |
| Install |
Through Hole |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Transistor Outline Package |
| Package series name |
TO |
| JEDEC |
not applicable |
|
|
PACKAGE INFO
|
| Supplier packaging |
TO-3P |
| Basic package type |
Through Hole |
| Number of pins |
3 |
| Pin shape |
Through Hole |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
5.45 |
| Package length (mm) |
16.2(Max) |
| Package width (mm) |
5(Max) |
| Package height (mm) |
18.9(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
16.2(Max) |
| Package Overall Width (mm) |
5(Max) |
| Package Overall Height (mm) |
23.8(Max) |
| Mounting surface height (mm) |
23.8(Max) |
| Install |
Through Hole |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Transistor Outline Package |
| Package series name |
TO |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
10 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
PU |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TU |
| Package |
Tube |
| Packing quantity |
450 |
|
|

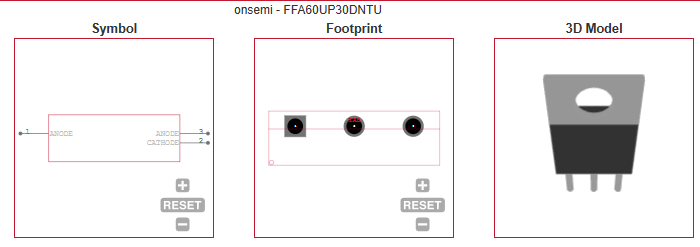

ECAD MODELS
|
|
| |
| |
